All-in-One Outdoor Security Enclosure AC and Back Up Battery Outdoor Surveillance Power Box

MSRP $1999.0

Built for the Trade

Reliable products backed by expert distributor support.

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email 905-799-0086

Product Description

Engineered for intelligent, high-performance surveillance deployments, this All-in-One Power and Control Enclosure is built to host your cameras, NVR, and supporting electronics within a single ruggedized aviation-grade aluminum body. Designed for outdoor and mission-critical environments, it delivers stable power distribution, advanced AI audio analytics, and integrated deterrence features—all while maintaining efficient cooling and superior reliability.

Smart Power Integration
Featuring a robust 24V 40Ah lithium battery (888Wh total), this unit ensures uninterrupted power backup for cameras and network equipment. It supports a universal 110V-277V AC input (max 1.5kW) and provides multiple output options:

  • 4 × DC12V terminals

  • 1 × DC48V terminal

  • 1 × AC110–240V output terminal

  • With an 8-channel industrial PoE switch (30W per port), it easily supports diverse setups including:

Intelligent AI Functions
Integrated AI capabilities enable real-time gunshot detection, keyword recognition, and scream/noise analysis, providing proactive alerts for critical audio events. When linked to compatible cameras, the system can activate a built-in siren and strobe light to deter intruders instantly.

Rugged, Efficient Design

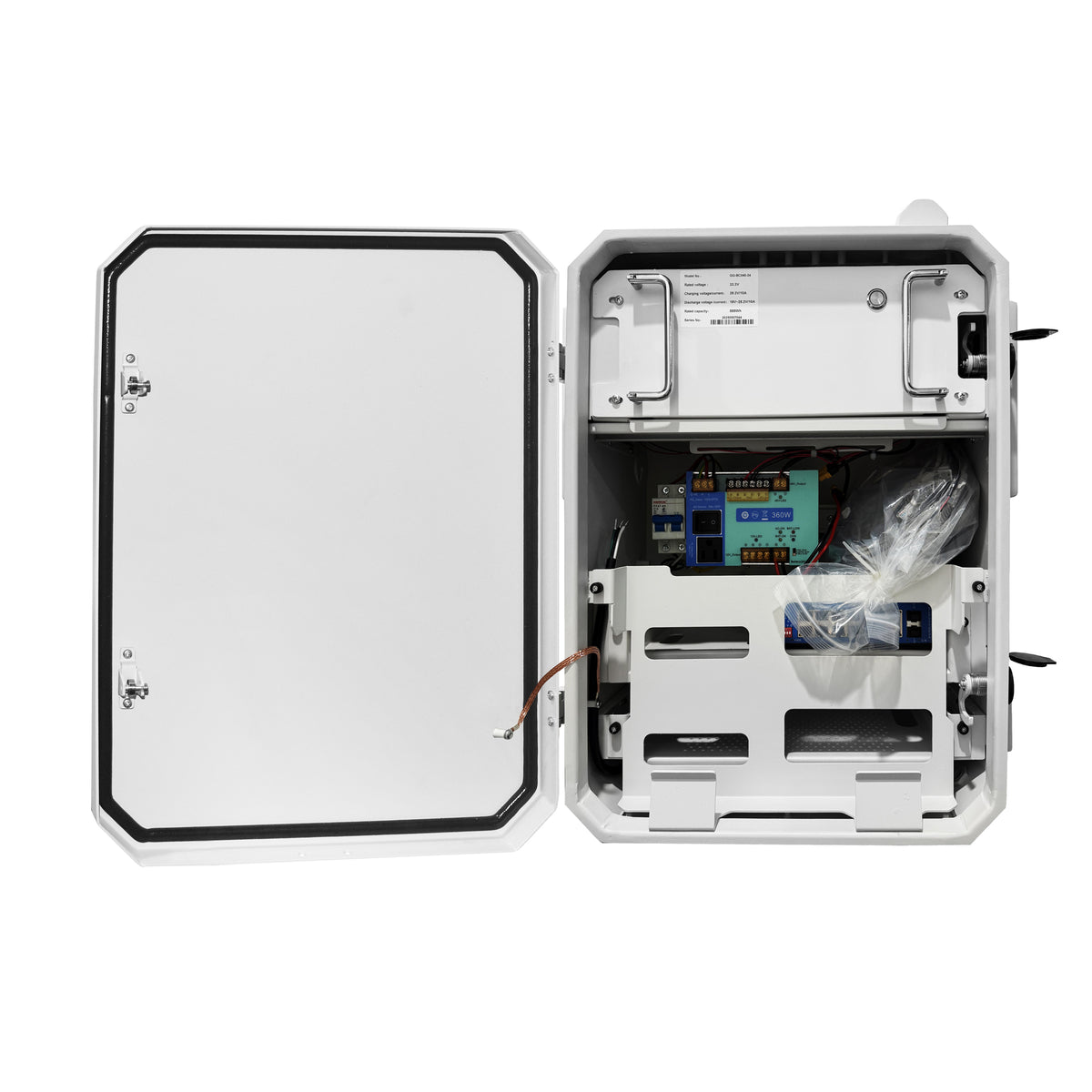

Crafted from aviation aluminum alloy, the enclosure ensures durability and corrosion resistance. It includes dual cooling fans for heat management and an air breaker for electrical protection. The internal layout provides dedicated space for NVR installation, keeping all components neatly organized.

Specifications Overview

  • Material: Aviation Aluminum Alloy

  • Dimensions: 474W × 530H × 302.5D mm (including mount)

  • Weight: 26kg (with 24V/40Ah battery), 18kg (without battery)

  • Cooling: Dual fans

  • Protection: Air breaker for circuit safety

This intelligent surveillance power enclosure is the perfect backbone for remote or off-grid security applications, ensuring continuous operation, smart analytics, and active deterrence in one consolidated solution.

360W PCM

AC Input

110-277V MAX:1.5KW

DC48V Output

3A(MAX 150W)

DC12V Output

5A(MAX 60W)

Battery Charging Output

DC24V (MAX150W)

External Fan Power Output

DC12V/1A, 2 Ports

External Led Power Output

DC12V/1A, 1 Port

UPS Signal Output

AC Power Supply is Normally Open，

Battery Powered Normally Closed.



Enclosure Material

Aviation Aluminum Alloy

Dimension

L:110 W:140   H:100(MM)

Product Weight

1.2KG

Working Temp.

-25°to 60°

Installation

DIN Rail

PoE Switch

8CH Industrial,AT30W for Each Port

Backup Battery

24V/40Ah with Heater, Ternary Lithium

Cooling Fans

2PCs, DC12V Powered from 360W PCM

Air Breaker

Yes

Deterrence Light

Default with 1PCs Sound AI PoE Light Siren

Enclosure

Material

Aluminum and Steel Combined

Mount

Pole & Wall(9-25CM Diameter Pole is Perfect)

Dimension

474Wx530Hx302.5D MM(Including Mount)

Gross Weight

26KG(with 24V/40Ah Battery Included), 18KG without Battery

Package Box Size

69x38x54CM

Your product is covered by a Warranty.
