AV Planet - LKV676KVM 4K@60Hz HDMI2.0 point to point extender over Single CAT6/6A/7 Cable up to 70M, HDR10 Zero latency ipcolor technology, With KVM Function Transmitter and Receiver Kit

AV Planet - LKV676KVM HDMI Extender 4K@60Hz HDMI2.0 point to point extender over Single CAT6/6A/7 Cable up to 70M, HDR10 Zero latency ipcolor technology, With KVM Function Transmitter and Receiver Kit

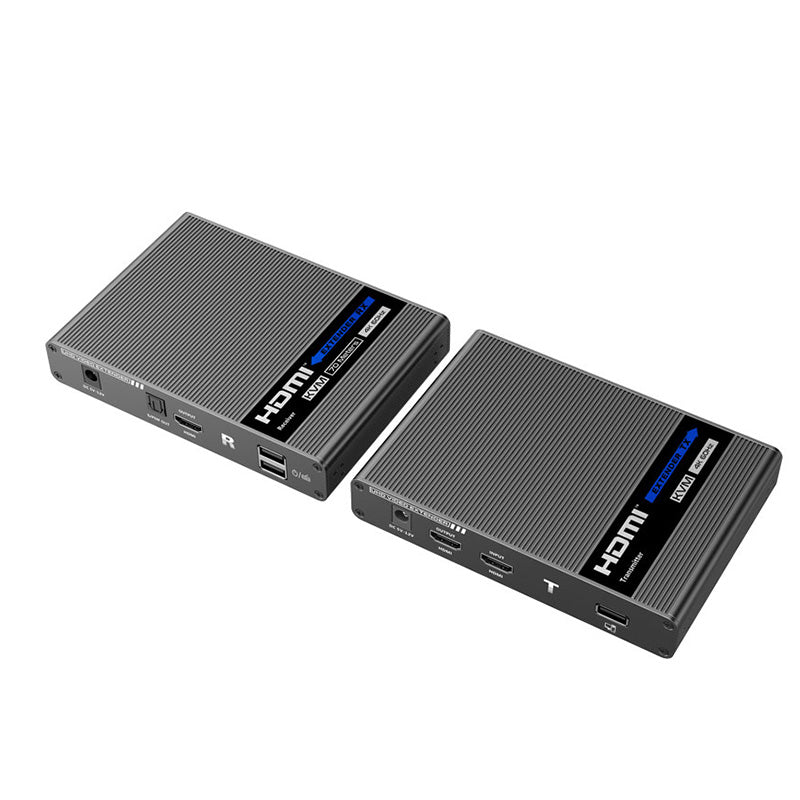

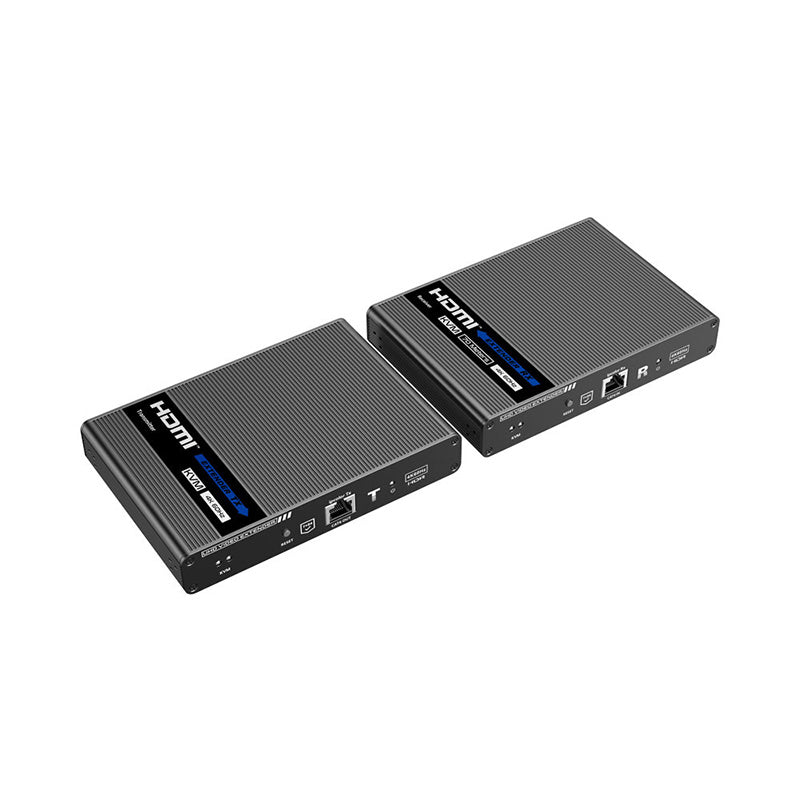

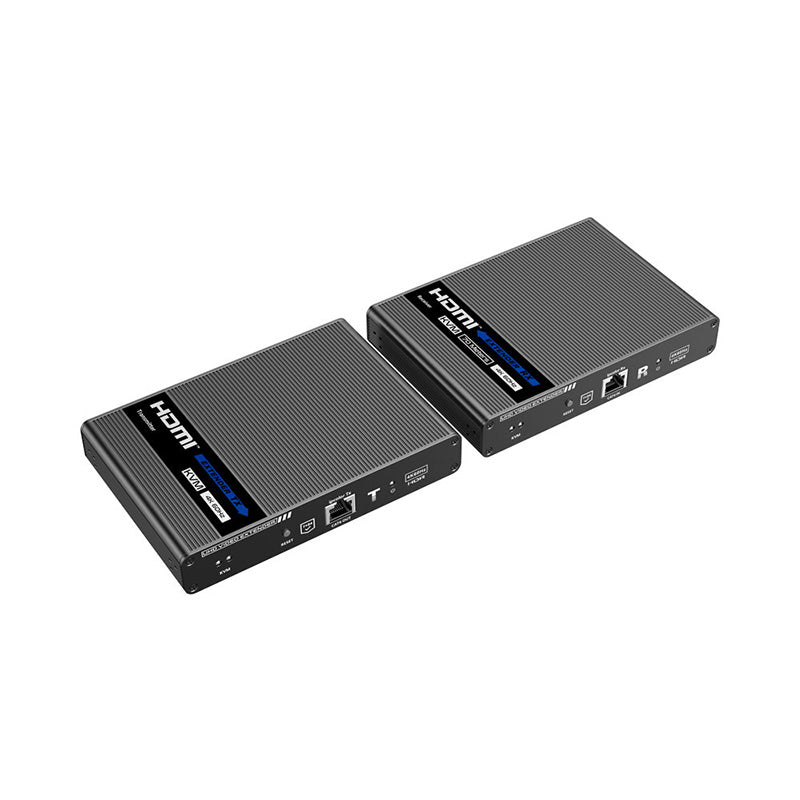

This HDMI Extender kit includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It has KVM function and It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc...

-Zero-latency

-ipcolor technology

-One to one connection

-4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable

-The receiver can extract the digital audio from the transmitter through the S/PDIF port

-Supports audio formats (Dolby True HD 7.1 CH, Dolby Digital 5.1 CH)

-Supports HDR (YUV4:4:4), EDID passback

-Transmitter support one HDMI loop-out

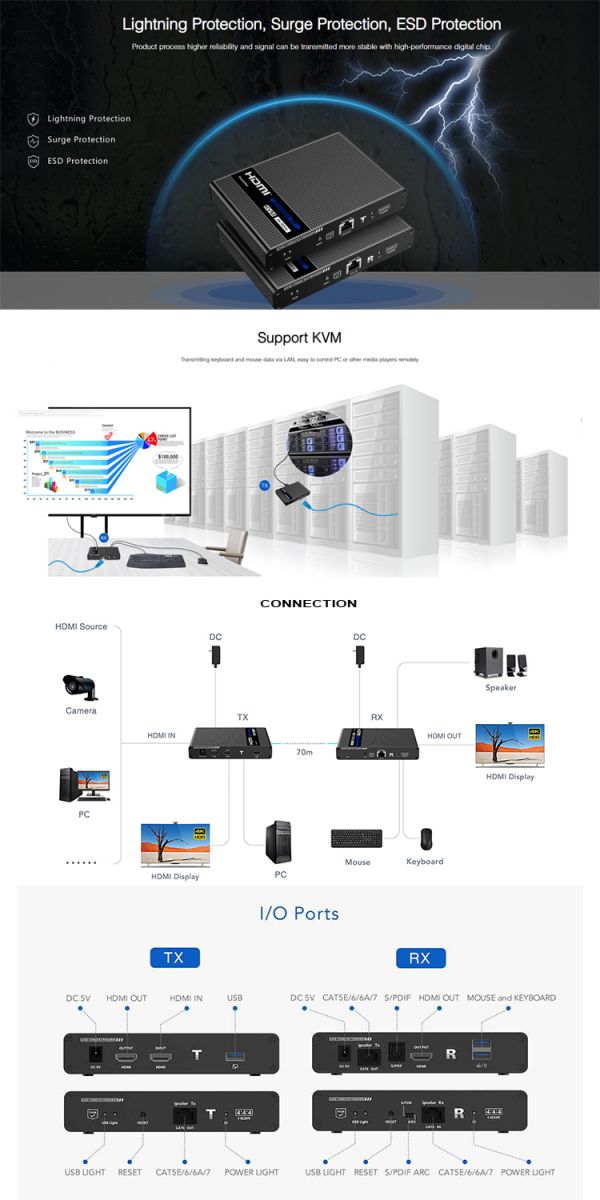

-Support KVM function.

-Lighting protection, surge protection, ESD protection

Power Supply:  Voltage Current DC5V-12V

Power Consumption: TX<4W, RX<4W

0.5~1.5Vp-p (TMDS)

HDMI Performance & Interference: HDMI Compliance HDMI 2.0

HDCP Compliance HDCP 2.2

HDMI Resolution:480i@60Hz, 480p@60Hz, S76i@S0Hz, 576p@50Hz,720p@S0/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,

3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960,1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900,1024x768, 800x600

Supports audio formats: LPCM/DTS-HD/DTS-Audio/Dolby True HD 7.1 CH/Dolby Digital 5.1 CH

Input & output TMDS signal: 0.7~1.2Vp-p (TMDS)

Input & output DDC signal: 5Vp-p (TTL)

Input cable length: ≤8m (AWG24)

Output cable length: ≤8m (AWG24)

Transmission Distance: CAT6/6A/7 ≤70m

Protection Level: Electrostatic protection of the whole unit Contact discharge level 3

Air discharge level 3 implementation of the standard: IEC61000-4-2

Operating Environment:

Working Temperature -20°C~60°C

Storage Temperature -30°C~70°C

Humidity (no condensation) 0%~90% RH

Physical Properties:

Dimensions (LxWxH) 150x107x28.4mm

Material Aluminium

Colour Black

Your product is covered by a Warranty.
