AV Planet - LKV372P HDMI Extender Over Cat6/6A/7, 4k@30Hz up to 40m

AV Planet - LKV372P - HDMI Extender Over Cat6/6A/7, 4k@30Hz up to 40m, 1080P up to 70M, zeor latency, IR & POC support, Transmitter and Receiver kit

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable.

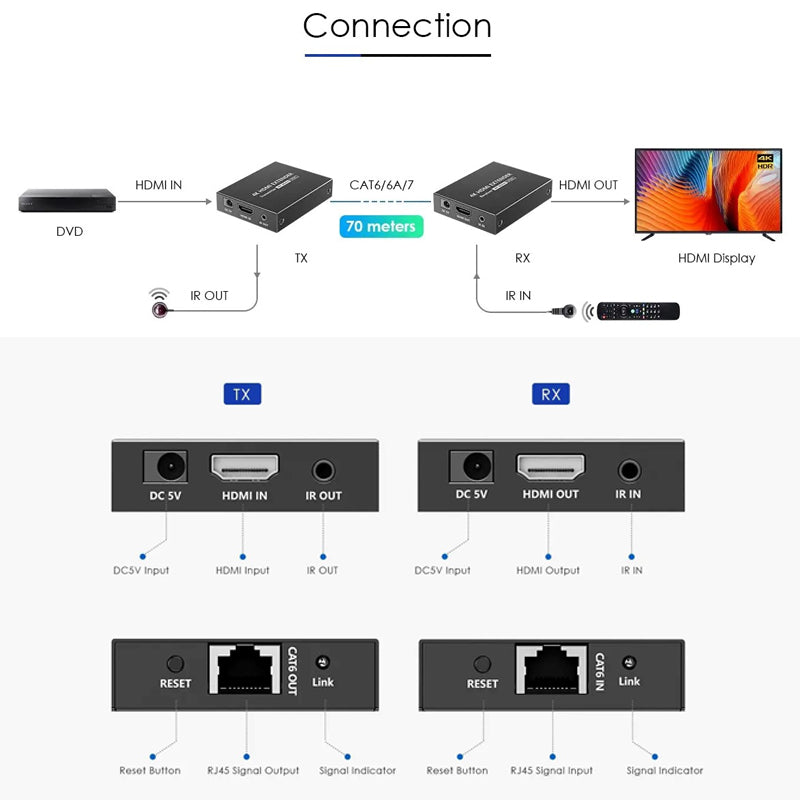

It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc

HDMI & IR Extender Kit Over Cat6/6A/7. 1080p up to 70m. Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed (Not Suitable for Cat5/5e)

-Zero latency

-Support up to 4K@30Hz resolution

-Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters

-Support IR pass-back function (20KHz~60KHz)

-Support HDR10

-Support EDID passthrough

-Support PoC network cable power supply,

-Only TX power supply is needed

-Power Supply

-Voltage/Current:DC 5V/2A

-Power consumption:TX+RX

HDMI Performance and Interface

HDMI resolution:800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050,

1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,

1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz

Audio formats:DTS, DTS-HD, PCM, LPCM

HDR:Support

EDID through:Support

IR Pass-back:Frequency Range: 20KHz~60KHz

Input and output TMDS signal:0.7~1.2Vp-p (TMDS)

Input and output DDC signal:5Vp-p (TTL)

Transmission Distance:Cat6/6A/7

1080p@60Hz transmission 70 metres

4K@30Hz transmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)

Protection Level:Electrostatic protection of the whole machine  Implementation of the standard: IEC61000-4-2

Operating Environment:

Working temperature:-20°C~60°C

Storage temperature:-30°C~70°C

Humidity (no condensation)  0%~90% RH

Body Properties

Dimension:75.0(L) x 60.0(W) x 16.5(H) mm

Weight: 127g

Warranty: 180 days

Package included:

1x transmitter unit (TX)

1x receiver unit (RX)

1x IR blaster extension cable

1x IR receiver extension cable

1x DC5V/2A adapter

1x user manaul

Your product is covered by a Warranty.
