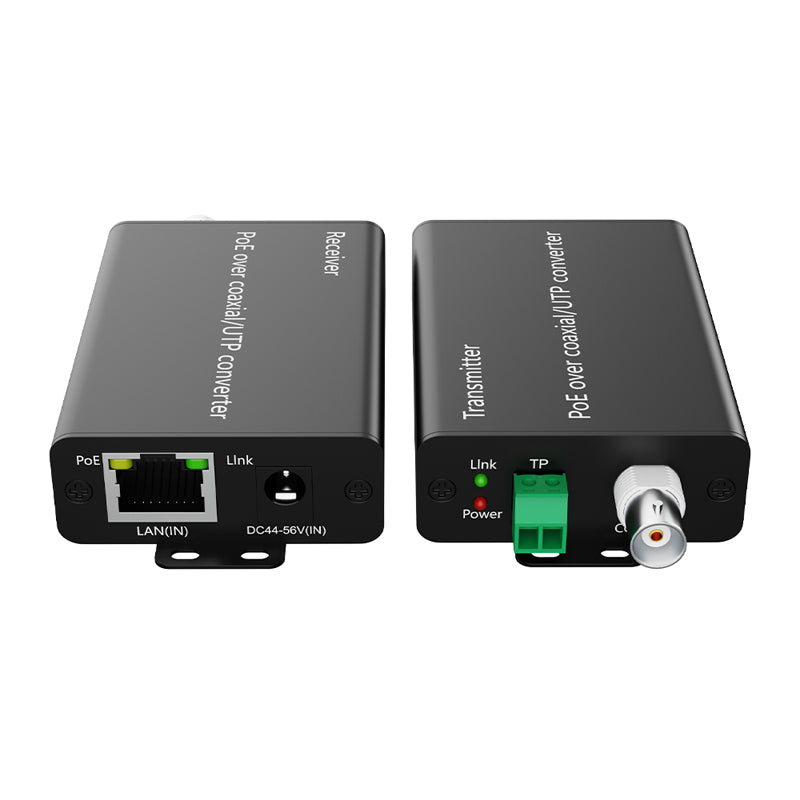

AV Planet - POE-EXT-POC500 Industrial PoE Extender Over Coaxial up to 500m and Twisted Pair up to 300m 2-in-1 Kit
-

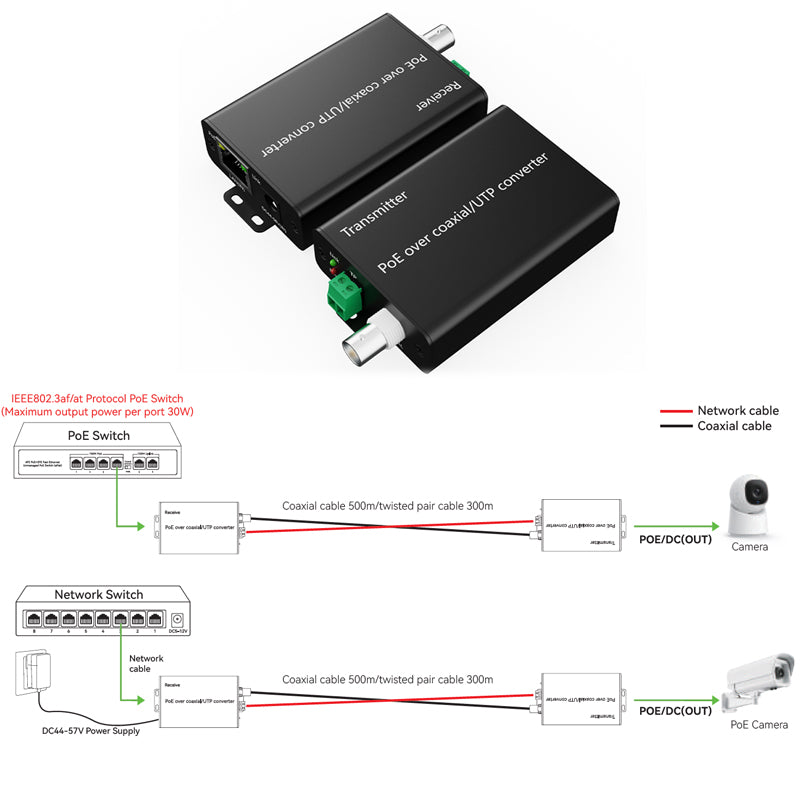

Ultra-Long Transmission Distance – Supports up to 500 meters over coaxial cable or 300 meters over twisted pair, ensuring stable high-speed data and power transmission.
4K HD Video Transmission – 100Mbps physical bandwidth with 94Mbps TCP throughput, capable of transmitting 4K video with <5ms delay, perfect for real-time surveillance.
PoE Power Supply Support – Compliant with IEEE802.3af/at, provides up to 30W PoE output for cameras or other powered devices.
Industrial-Grade Reliability – Operates stably from -10°C to 70°C, featuring metal shielding, lightning protection, anti-surge, and gold-plated connectors for long-term durability.
Plug-and-Play Design – No configuration required, supports IGMP multicast, and runs continuously 24/7 for maintenance-free performance.
Cost-Effective Solution – Greatly reduces cabling costs and simplifies setup for large-scale monitoring, industrial automation, and intelligent transportation systems.
| Category | Details |
|---|---|
| Model | POE-EXT-POC500 |
| Transmission Distance | Up to 500m (coaxial) / 300m (twisted pair) |
| Bandwidth / Throughput | 100Mbps physical bandwidth / 94Mbps TCP |
| PoE Output | IEEE802.3af/at, max 30W |
| Power Supply Input | DC44–56V ±10%, ≥1A |
| Power Consumption | ≤2W |
| Connectors | BNC / Phoenix terminal / RJ45 / DC 2.1–5.5mm |
| Operation Temperature | -10°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 0–95% (non-condensing) |

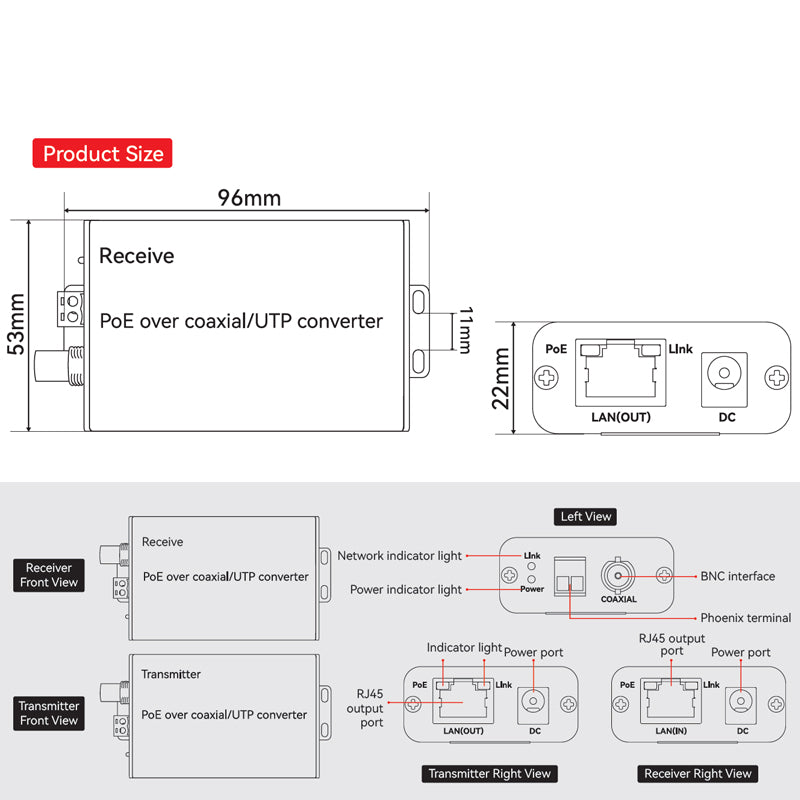

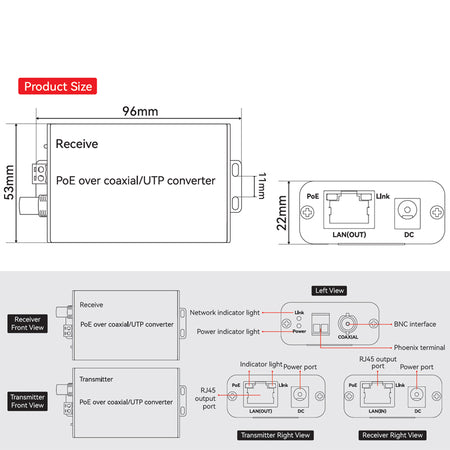

| Dimensions | 96mm × 53mm × 22mm |
| Net Weight | Approx. 88.5g |
| Housing Material | Metal, black |
| Indicators | Power, Link, PoE (Yellow), E-Link (Green) |
| Multicast Support | IGMP bidirectional multicast |
| Compatibility | IEEE802.3 10/100Mbps |
| Applications | CCTV systems, digital media, industrial automation, campus and transport monitoring |
