Rotel C8+ 8 Ch. Power Amplifier
MSRP $
Couldn't load pickup availability
Built for the Trade
Reliable products backed by expert distributor support.
Got questions?
Feel free to get in touch
Ask an expert!
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads.

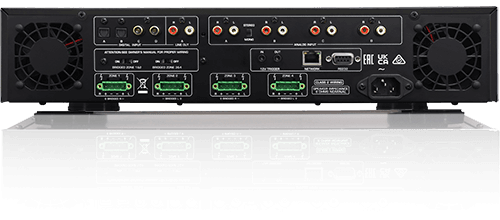

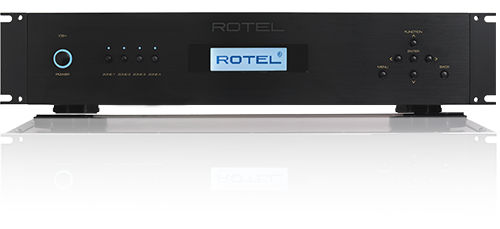

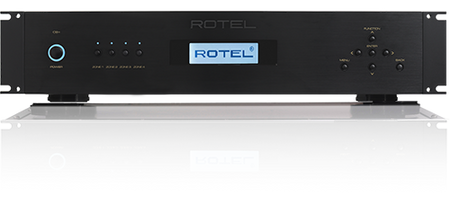

The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
Dimensions (W × H × D)
430 × 97 × 414mm
17" × 3.9" × 16.3"
17" × 3.9" × 16.3"
Front Panel Height
2U / 88.1mm (3.5")
Power Requirements
120V, 60Hz
Power Consumption
980W
Standby Power Consumption
Normal: <0.5W
Network Standby: <2W
Net Weight
18.35kg (40.79lbs.)
BTU Rating (4Ω, 1/8th power)
2744 BTU/h
Maximum Power Output
150W/Ch (8 channels driven, 4Ω)
Continuous Power Output
100W/Ch (8 channels driven, 8Ω)
Total Harmonic Distortion (THD)
<0.1%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 102dB
