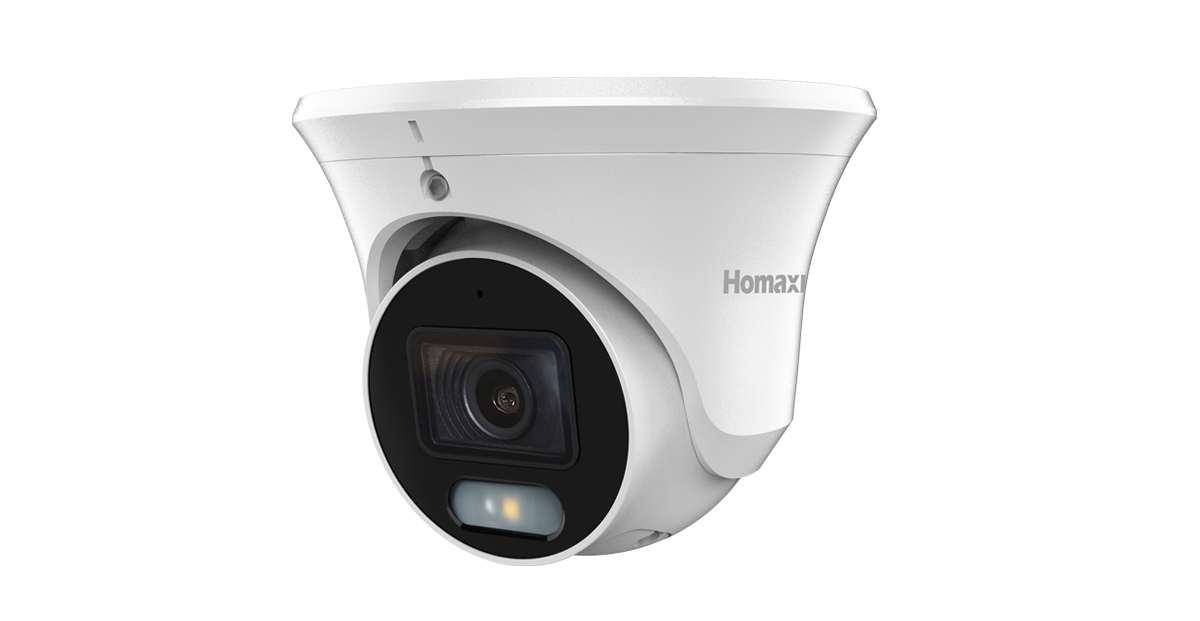

Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm

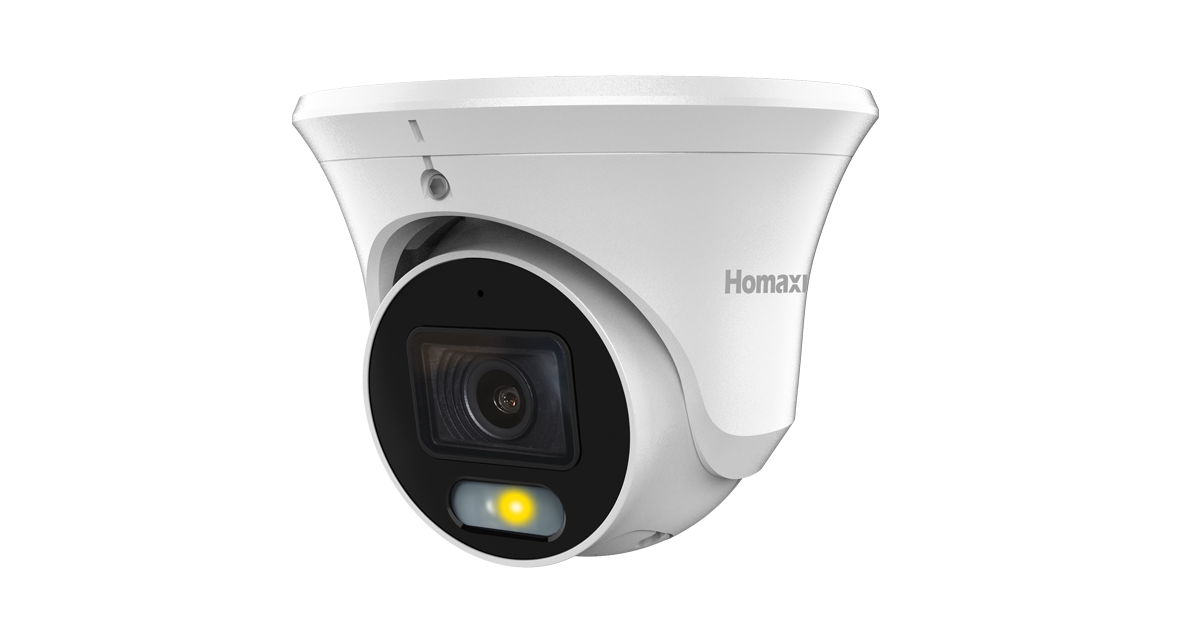

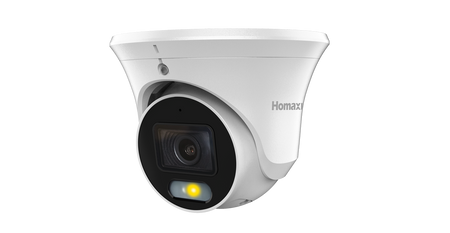

Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 2

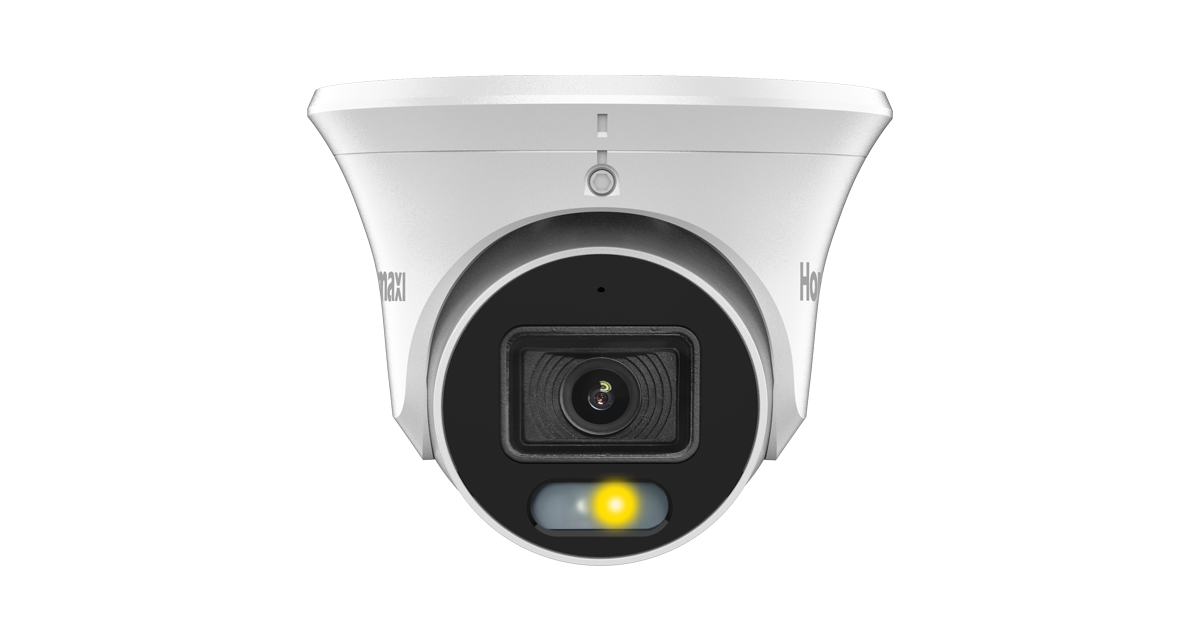

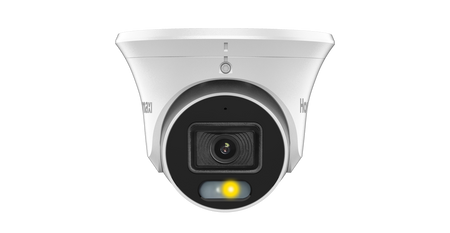

Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 3

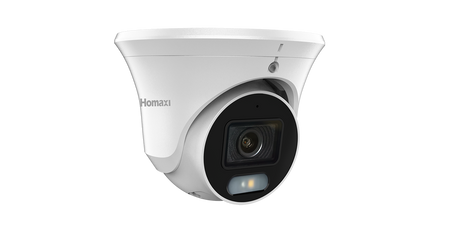

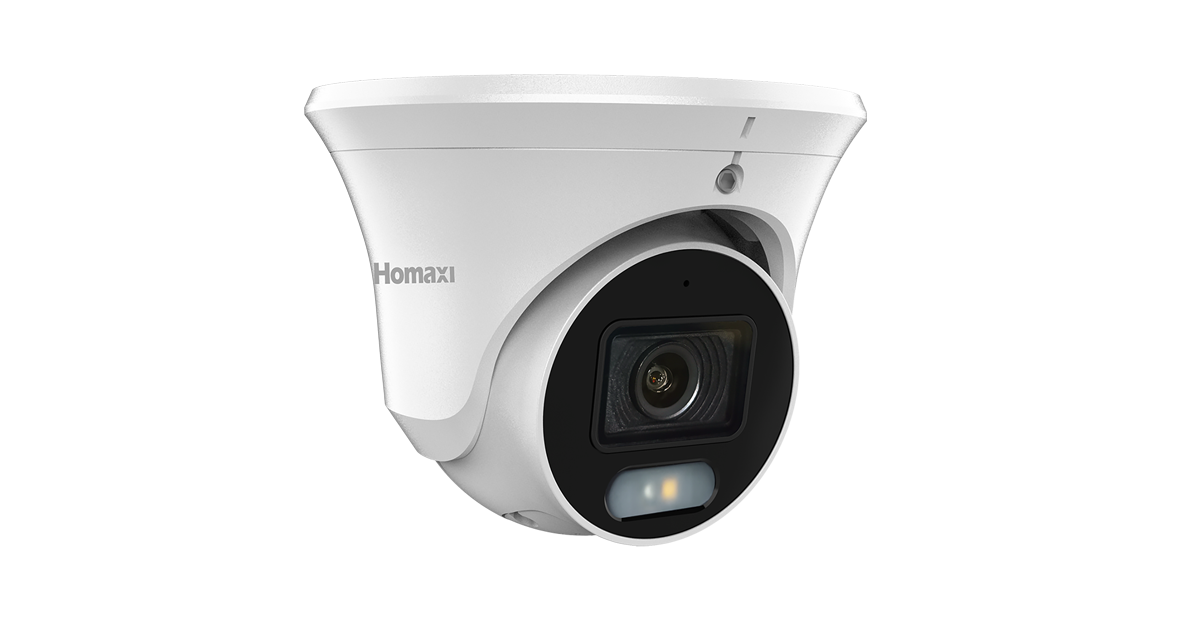

Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 4
Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm
Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 2
Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 3
Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm – view 4

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Homaxi

Homaxi IPC4TF2AR6-DL1 6MP Smart Dual Illumination Fixed Turret Network Camera – 2.8 mm

SKU: IPC4TF2AR6-DL1
Built for the Trade

Reliable products backed by expert distributor support.

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email 905-799-0086

The Homaxi IPC4TF2AR6-DL1 is a 6 MP fixed-lens turret network camera from Homaxi's S Series, built for round-the-clock surveillance of entrances, driveways, car parks and commercial premises. Its smart dual illumination system carries both infrared and warm-white LEDs, each with a 30 m range, so the camera can record discreetly in black and white or switch to full-colour night video when light is needed. A 1/2.7" progressive-scan CMOS sensor with 120 dB wide dynamic range handles strong backlight, deep-learning analytics classify people and vehicles to cut false alarms, and H.265+ compression keeps storage and bandwidth low. The IP67 metal housing is rated from -40 °C to 60 °C and the camera runs on PoE (802.3af) or 12 V DC. This version is fitted with the wide-angle 2.8 mm lens (109° horizontal field of view).

Key features

  • 6 MP (3296 x 1856) resolution at up to 20 fps from a 1/2.7" progressive-scan CMOS sensor
  • Smart dual illumination: 30 m infrared plus 30 m warm-white light for colour night video; Smart IR
  • 120 dB true WDR, 2D/3D noise reduction, BLC, HLC and ROI for clear images against strong backlight
  • Deep-learning human and vehicle classification: line crossing, area intrusion, region entrance/exit, smart motion, fast-moving and blur detection; face detection
  • H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with triple streams; 16 kbps – 13.4 Mbps
  • Built-in microphone (G.711A/U audio); on-board storage up to 512 GB; NAS recording
  • ONVIF Profile S/G/T and CGI; RTSP, HTTPS, P2P and other standard protocols; IP filtering and user authentication
  • PoE (IEEE 802.3af) or 12 V DC, max 5.8 W; IP67 metal housing, -40 °C to 60 °C operating range
  • 3-axis adjustment (pan 0–360°, tilt 0–75°, rotation 0–360°) for easy aiming on walls or ceilings
  • Fixed 2.8 mm F1.6 wide-angle lens: 109° horizontal / 58° vertical / 130° diagonal field of view

Model: IPC4TF2AR6-DL1  |  Series: Homaxi S Series  |  Lens: 2.8 mm fixed

Specifications

Camera
Image sensor 1/2.7" progressive scan CMOS
Max. resolution 6 MP (3296 x 1856)
Min. illumination Colour: 0.006 lux (F1.6, AGC on); 0 lux with light on
Shutter Auto / manual, 1/3 s – 1/100,000 s
Day / night IR-cut filter
Illumination distance 30 m (IR light); 30 m (warm light)
Smart IR Supported
WDR 120 dB
Noise reduction 2D / 3D DNR
Image enhancement BLC, HLC, ROI, rotate; brightness, contrast, saturation, hue, sharpness
Adjustment Pan 0–360°, tilt 0–75°, rotation 0–360°
Lens
Focal length 2.8 mm (fixed)
Aperture F1.6
Lens mount M12
Field of view H 109°, V 58°, D 130°
DORI (F1.6) Detect 73 m, observe 29.2 m, recognise 14.6 m, identify 7.3 m
Video
Main stream Up to 20 fps at 3296 x 1856 / 2880 x 1620 / 2560 x 1440 / 1920 x 1080
Sub stream Up to 20 fps at 1280 x 720 / 704 x 576 / 352 x 288 (50 Hz); 704 x 480 / 352 x 240 (60 Hz)
Third stream Up to 20 fps at 352 x 288 (50 Hz) / 352 x 240 (60 Hz)
Video compression H.265+, H.265 (Main), H.264+, H.264 (Base / Main / High), MJPEG
Bit rate 16 kbps – 13,368 kbps
Streams Triple stream
Audio
Audio compression G.711A, G.711U (64 kbps)
Microphone Built-in
Speaker / audio I/O N/A
Smart features
Basic events Motion detection, tampering
Smart events Smart motion detection, line crossing, area intrusion, region entrance, region exiting (human / vehicle classification), fast moving, blur detection
Face detection Supported
Active deterrence N/A (no red/blue warning light or sound warning)
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
Interoperability ONVIF Profile S, G, T; CGI
Security User authentication, IP address filtering, region splice; up to 10 users
Network storage NAS
Client support Web browser (plug-in live view on IE 10/11; Chrome 57+ and Firefox 52+ for local service); iPhone, iPad, Android
Interfaces
Ethernet 1 x RJ45 10/100M self-adaptive
On-board storage Up to 512 GB
Alarm I/O N/A
Reset button Supported
General
Power supply DC 12 V ±10% or PoE (IEEE 802.3af)
Max. power consumption 5.8 W
Operating temperature -40 °C to 60 °C (-40 °F to 140 °F)
Humidity ≤ 95%, non-condensing
Ingress protection IP67
Housing material Metal
Dimensions Ø 103.5 x 82.4 mm (Ø 4.07" x 3.24")
Weight 450 g (0.99 lb)
Accessories (optional)
Mounts AC-JB02 junction box, AC-WM02 wall mount, AC-PM03 pole mount, AC-CMB02 pendant / combiner box, AC-PC06 corner mount
