JBL Control 419CS/T Ceiling Subwoofer (EA)
Couldn't load pickup availability
Built for the Trade
Reliable products backed by expert distributor support.
Got questions?
Feel free to get in touch
Ask an expert!

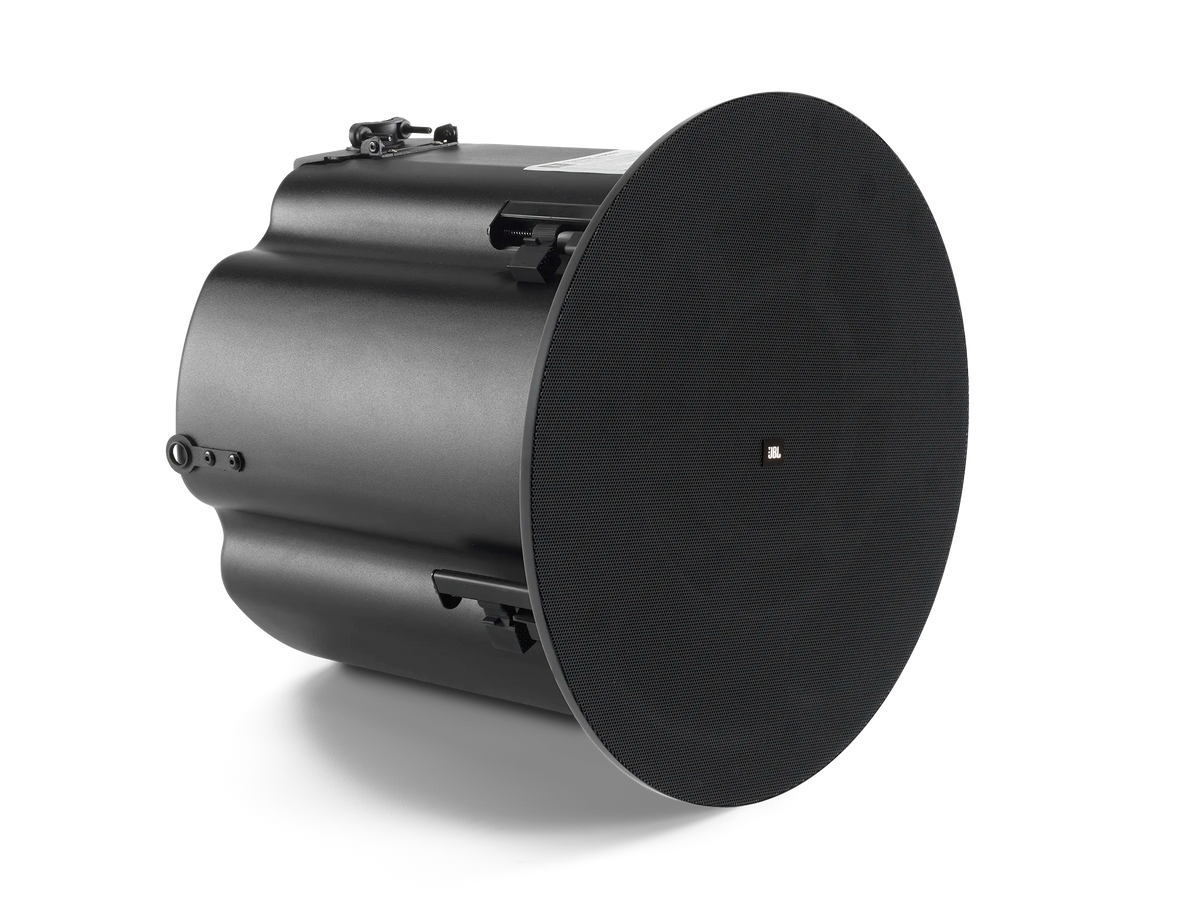

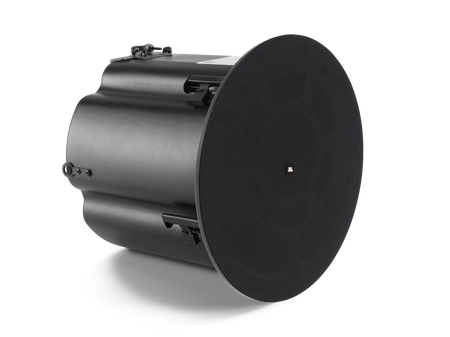

The JBL Control 419CS/T is a ceiling subwoofer, featuring an 8” woofer and integrated enclosure for installation in most ceiling plenum spaces. When you need to extend low-end performance, the Control C419CS/T integrates seamlessly with Control 400 Series full-range models to significantly extend low-frequency bass output. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 419CS/T includes a transformer to support both 70V/100V and low impedance applications.
- 8” (200mm) woofer
- Integrated enclosure with two large, tapered ports for warm, smooth bass response
- Built-In Passive low-pass filter for simple integration with full-range speakers
- Built-in 70V/100V subwoofer-band multi-tap transformer, plus 8-ohm direct input

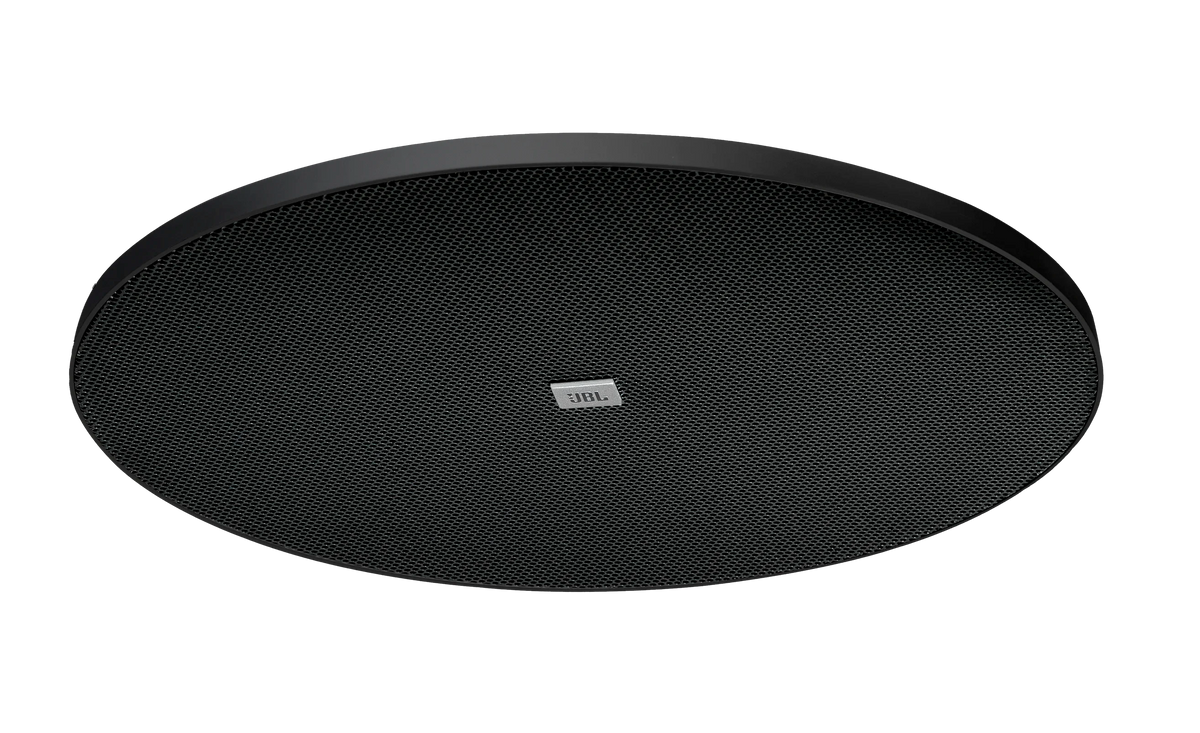

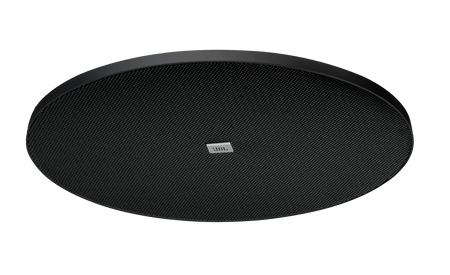

- Full-face, easily paintable magnetic grilles

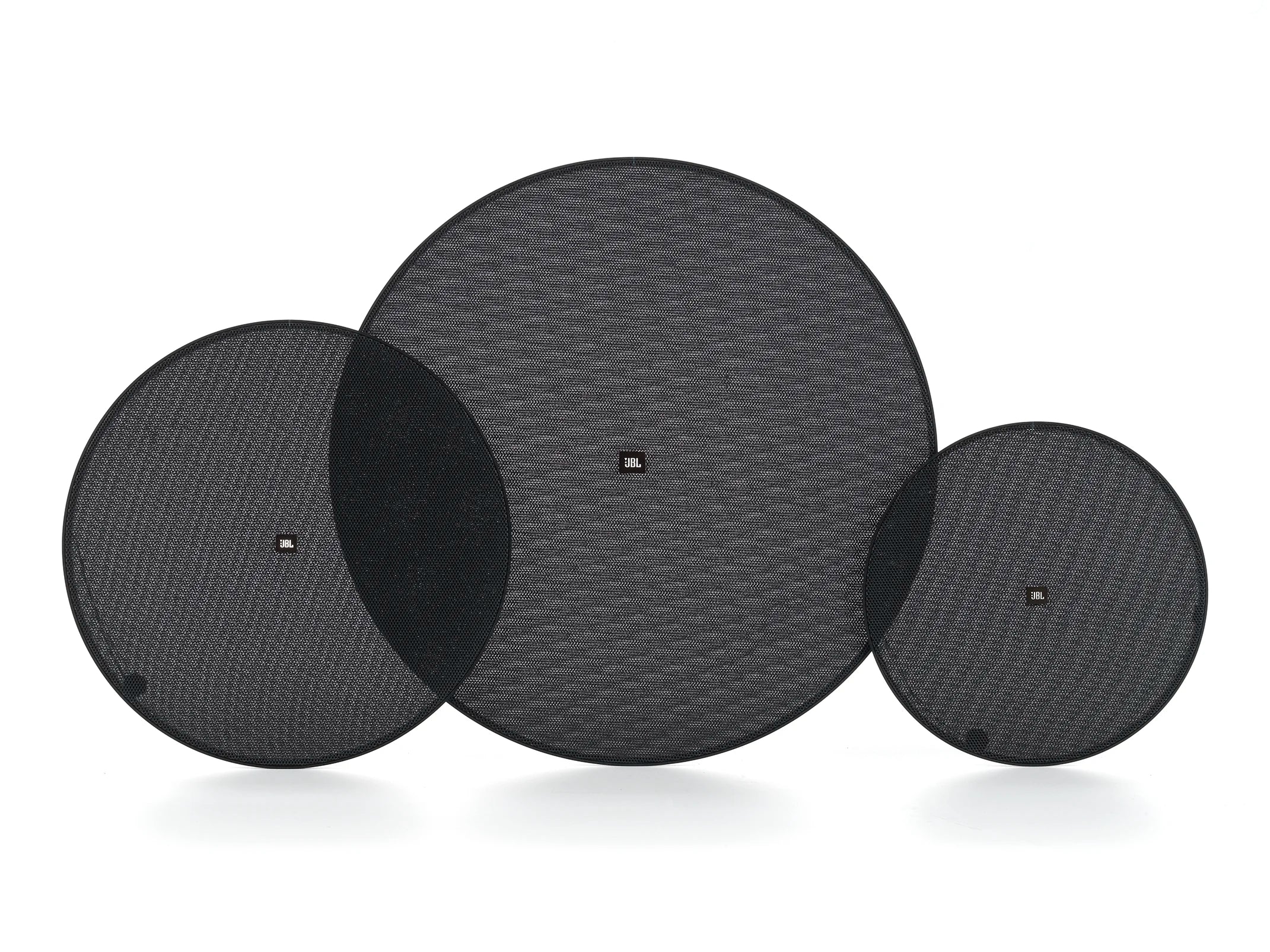

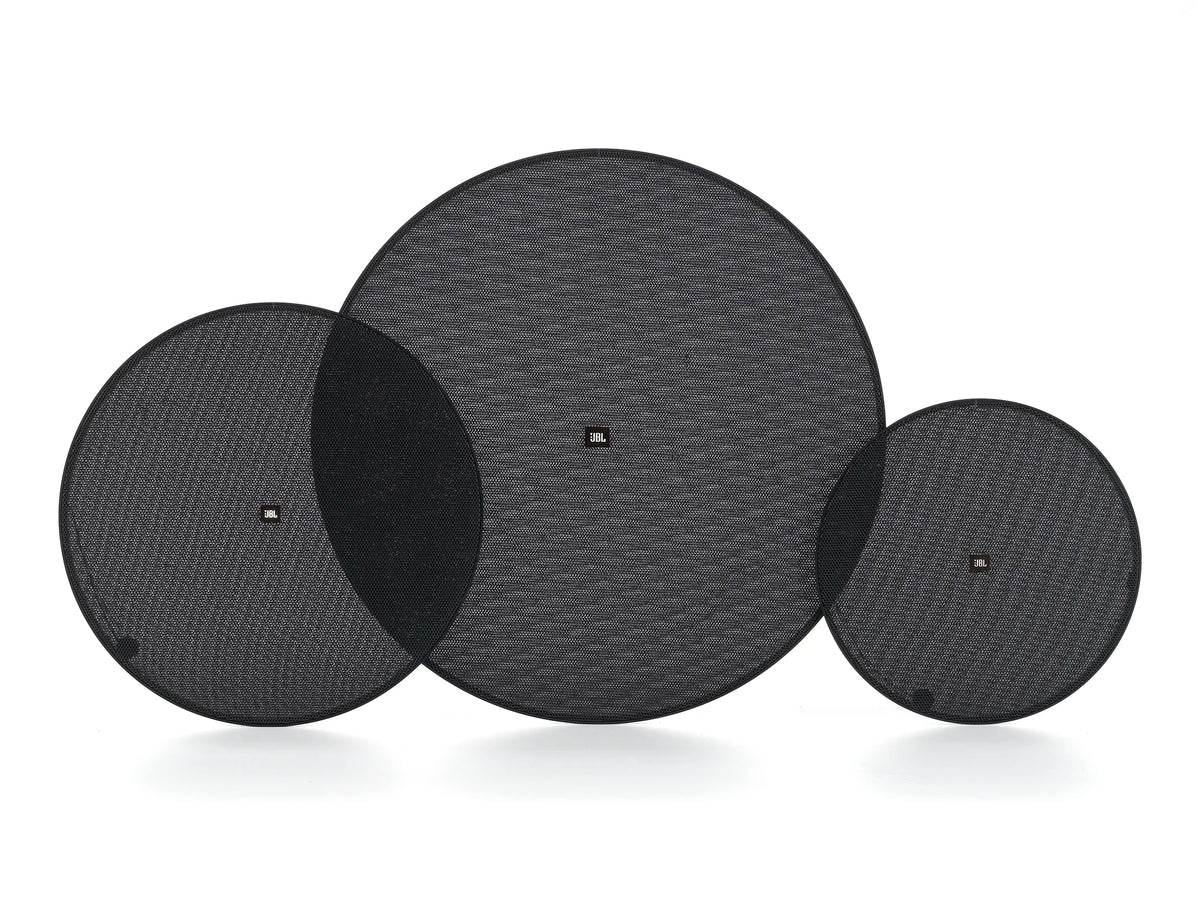

- Black and square magnetic accessory grilles available
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
| Frequency Range (-10 dB) | 47 Hz – 320 Hz |
| Power Capacity | 160 W (640 W Peak), Continuous IEC Pink Noise (2 hrs) 80 Watts (320 W Peak) Continuous IEC Pink Noise Power (100 hrs) |
| Sensitivity (1m/1W) | 90dB |
| Coverage Angle | 180° conical |
| Maximum SPL (1m) | 112dB continuous pink noise (118 dB peak) |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W |
| Drivers | 200 mm (8 in) with treated paper cone and high-performance magnet |
| Ceiling Cutout Size | 308 mm (12.2 in) |
| Dimensions | 289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed. |
| Environmental | IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C |
| Optional Accessories | JBL-MTC-419BG black (RAL9004) magnetic round grille JBL-MTC-419SG white (RAL9003) magnetic square grille JBL-MTC-419NC new construction bracket JBL-MTC-419MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 8.8 kg (19.4 lbs) |
| Shipping Weight (pair) | 25.27 kg (55.7 lbs) |
| SKU Numbers | JBL-C419CS/T |
Your product is covered by a Warranty.
