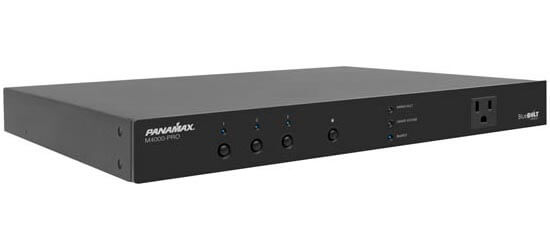

Panamax M4000-Pro Home entertainment System

• Ideal for moderate (DIY) to high end (installed) home entertainment systems
• Protects connected equipment from power surges and dangerous voltage conditions (7 outlets)
• Filters AC for best electronics performance
• Provides remote power, energy and network management from any web enabled device at www.mybluebolt.com
• Reduces equipment issues/services calls
• Provides visibility on energy usage with cloud-based monitoring and tracking
• Reduces excess energy consumption with scheduled on/off commands
• Automatically reboots network equipment when connectivity is lost

Features

• Entry Level BlueBOLT component
• BlueBOLT functionality
• 7 rear panel outlets
• Three controllable outlet banks
• Signal side protection
• 12V trigger
• Linear Level 3 Filtration
• AVM + Protect or Disconnect protection

UL 1449 Voltage Protection Rating: 330V L-N, 400V L-G, 400V N-GUL 1449 Nominal Discharge Current: 3,000AEnergy Dissipation: 1,575 Joules

General

• FamilyPro Series
• Line Voltage120 (Volts)
• Number of Outlets8
• Number of Isolated Banks0
• Outlet Descriptions

  All outlet banks protected, filtered and individually controllable

  Bank 1 has two outlets, Bank 2 has two outlets, Bank 3 has three outlets

• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)No
• Front Media Light(s)No
• ControlOutlet bank control using BlueBOLT or XML commands. Limited outlet bank control through front panel buttons or rear panel DC trigger.
• Voltage RegulationNo
• CompliancecCSAus
• USB ChargingN/A
• Low Voltage Trigger12V In
• AC Power Cord8 ft. detachable 14/3AWG, NEMA 5-15P
• Dimensions19″ W (17″ without rack ears) x 13″ D x 1.75″ H
• Weight10.63 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff95 VAC ± 2 VAC
• Over-Voltage Shutoff134 VAC ± 2 VAC
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyLiFT
• Filtration Rating-18/7dB @ 10kHz
  -50.5dB @ 100kHz
  -43.9dB @ 1MHz
• Signal Line Protection1 LAN
  1 Tel
  1 Cable/Satellite

Other Specifications

• UL 1449 Voltage Protection Rating330V L-N, 400V L-G, 400V N-G
• UL 1449 Nominal Discharge Current3,000A
• Energy Dissipation1,575 Joules

Proposition 65 Warning

• Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Your product is covered by a Warranty.
