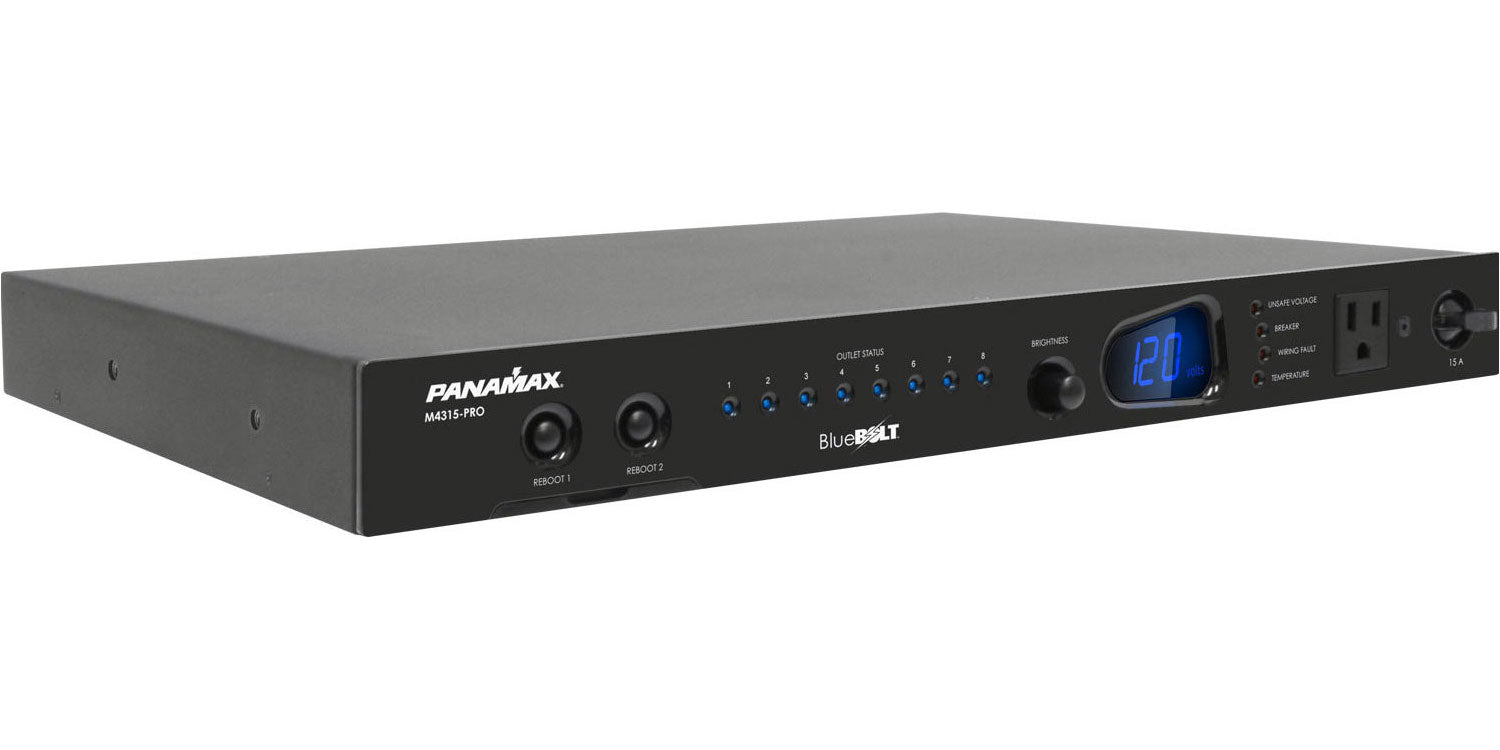

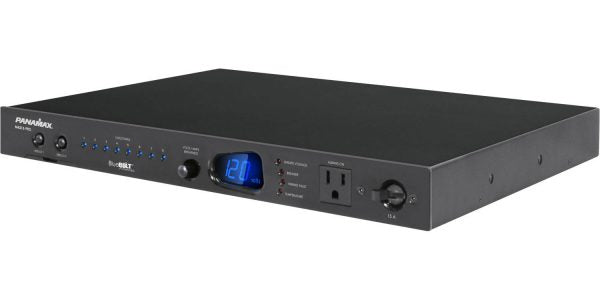

Panamax M4315-PRO Power Controller

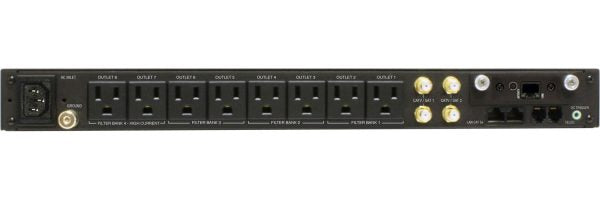

The M4315-PRO features Panamax’s revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all eight (8) rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4315-PRO.

1 RU 15 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord

Power Management with Control System Interactive Functionality.

• 15 Amp Capacity M4315-PRO
• 8 Individually Controllable Rear Panel Outlets
• Fully Programmable
• TCP/IP (BlueBOLT™) Installed
• Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
• One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
• Front Panel Circuit Breaker
• Removable Front Rack Ears
• 12 Volt Input Triggering
• Detachable 10 ft. Power Cord
• AVM & Protect-or-Disconnect Circuitry

General

• FamilyPro Series
• Line Voltage120 (Volts)
• Number of Outlets9
• Number of Isolated Banks4
• Outlet Descriptions

  1 (always on, linearly filtered outlet, front panel)

  6 (individually switchable, linearly filtered outlets)

  2 (individually switchable, high current outlets)



• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)Volts/Amps Combo Meter
• Front Media Light(s)No
• ControlFull outlet control using BlueBOLT or Telnet commands. Limited outlet control through front panel buttons or rear panel DC trigger.
• Voltage RegulationNo
• CompliancecCSAus
• USB ChargingN/A
• Low Voltage Trigger12V In
• AC Power Cord10 ft. detachable
• Dimensions19″ W (17″ without rack ears) x 12.25″ D x 1.75″ H
• Weight12 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff100 VAC ± 2 VAC
• Over-Voltage Shutoff134 VAC ± 2 VAC
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyLiFT
• Filtration Rating

  Banks 1, 2, 3: 76db, 5KHz – 250 kHz

  Bank 4 High Current Outlets: 46 db, 250 KHz – 1 Mhz

• Signal Line Protection1 LAN
  1 Tel
  2 Cable/Satellite

Other Specifications

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)500V
• Single Pulse Energy Dissipation2700 Joules
• Peak Impulse Current135,000 Amps
• LAN – Wires Protected8-Wires
• LAN – Compatibility10/100/1000 BASE-T
• LAN – Clamping Level60 ± 5V
• Coax – ShieldedYes
• Coax – Insertion Loss< 0.5 dB
• Coax – HD 1080 i/p ReadyYes
• Coax – Frequency Range0 MHz – 2.2 GHz
• Coax – ConnectionsFemale “F”, Gold Plated
• Coax – Clamping Level75V
• Coax – BidirectionalYes
