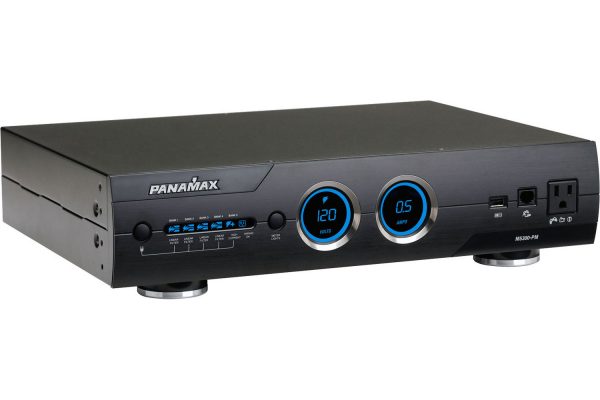

Panamax M5300-PM Power Management

Improves Picture and Sound Quality

Level 4 Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

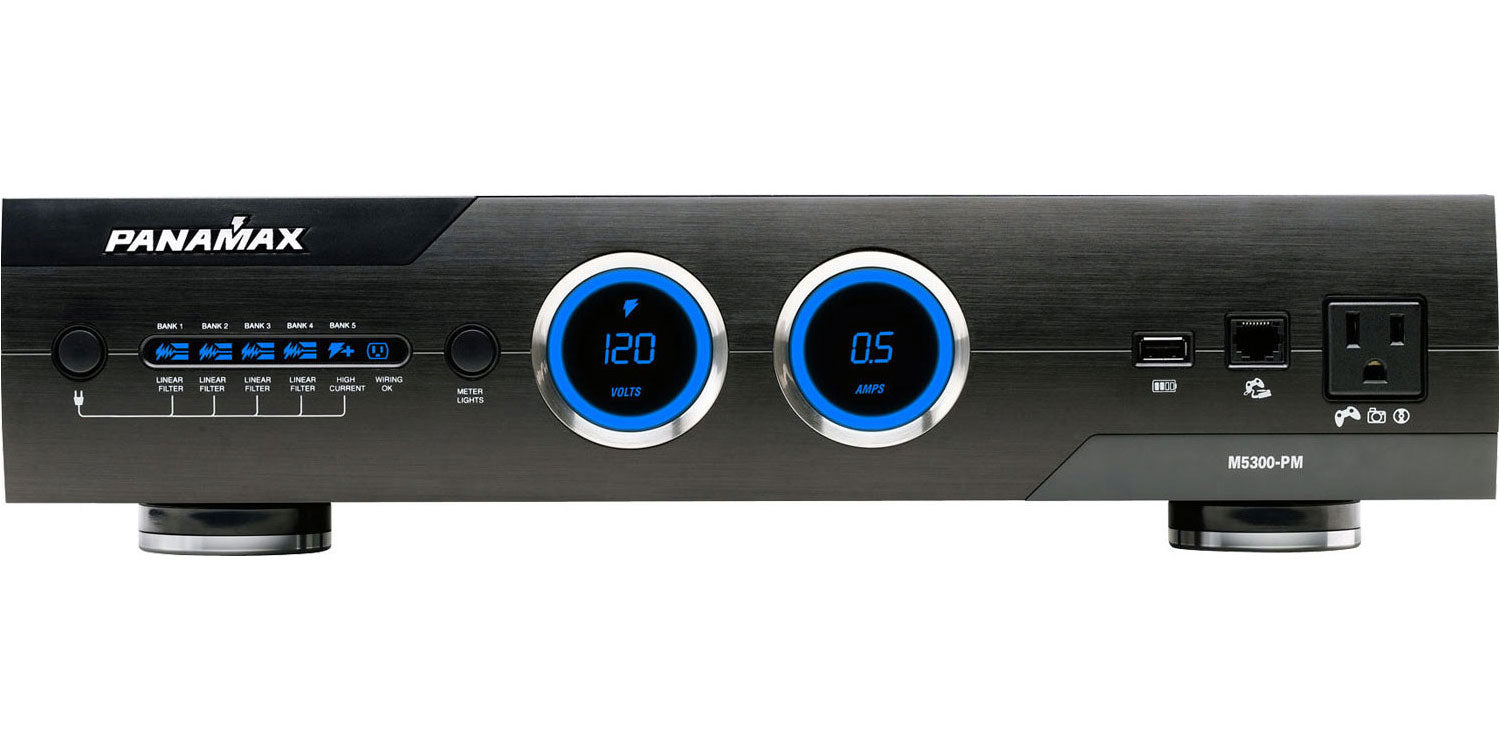

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax™ patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing red lightning bolt will be displayed in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5300-PM is designed to provide noise isolation between 5 isolated outlet banks (including 1 bank with 2 high current outlets) so that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank.

Clean Power Level 4

Improves picture and sound quality by eliminating noise across the entire AC bandwidth. 40% more efficient at eliminating noise than Clean Power Level 3.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

High Current Outlets

2 outlets for equipment with high power demands (Amps/Subwoofers).

USB Charger

1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.

Gaming LAN Port

Easy access to LAN port on front panel. Perfect for online gaming.

5 Isolated Outlet Banks

Isolating outlet banks from one another prevents noise contamination between components.

12 Volt Trigger

Allows source equipment to activate or deactivate the switched outlets on the M5300-PM.

Power Sequencing

Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.

11 Outlets

5 Always On, 4 Switched, 2 Switched High Current.

General

• FamilyPM Series
• Line Voltage120 (Volts)
• Number of Outlets11
• Number of Isolated Banks5

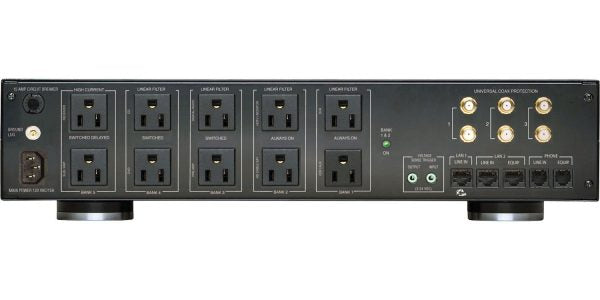

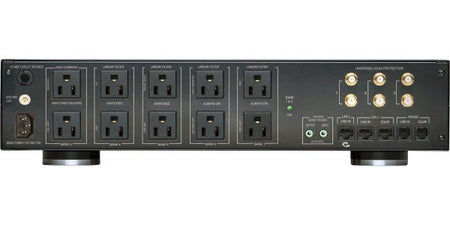

• Outlet Descriptions

  1 (always on, linearly filtered outlet, front panel)

  4 (always on, linearly filtered outlets, rear panel)

  4 (switchable, linearly filtered outlets, rear panel)

  2 (switchable high current outlets, rear panel)



• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)1 voltmeter, 1 Ammeter
• Front Media Light(s)No
• ControlOn/Off control of switched outlets through front panel power button or rear panel DC trigger.
• Voltage RegulationNo
• CompliancecCSAus
• USB Charging1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
• Low Voltage Trigger12 V, In/Out
• AC Power Cord10 ft. detachable
• Dimensions17″ W x 12.75″ D x 3.5″ H, (4.1″ Including feet)
• Weight12.8 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff90 VAC ± 2 VAC
• Over-Voltage Shutoff142 VAC ± 8 VAC
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyLiFT
• Filtration Rating

  Bank 1: Up to -86 db (100 KHz _ 2 MHz)

  Bank 2: Up to -91 db (100 KHz _ 2 MHz)

  Bank 3: Up to -81 db (100 KHz _ 2 MHz)

  Bank 4: Up to -100 db (100 KHz _ 2 MHz)

  Bank 5, High Current Outlets: Up to -81 db (100 KHz _ 2 MHz)



• Signal Line Protection2 LAN, 1 Tel, 3 Cable/Satellite

Other Specifications

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)500V
• Single Pulse Energy Dissipation2125 Joules
• Peak Impulse Current72,000 Amps
• LAN – Wires Protected8-Wires
• LAN – Compatibility10/100bT
• LAN – Clamping Level60V ± 5V
• Coax – ShieldedYes
• Coax – Insertion Loss< 0.5 dB
• Coax – HD 1080 i/p ReadyYes
• Coax – Frequency Range0 MHz – 2.2 GHz
• Coax – ConnectionsFemale ñFî, Gold Plated
• Coax – Clamping Level75V
• Coax – BidirectionalYes

Proposition 65 Warning

• Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
