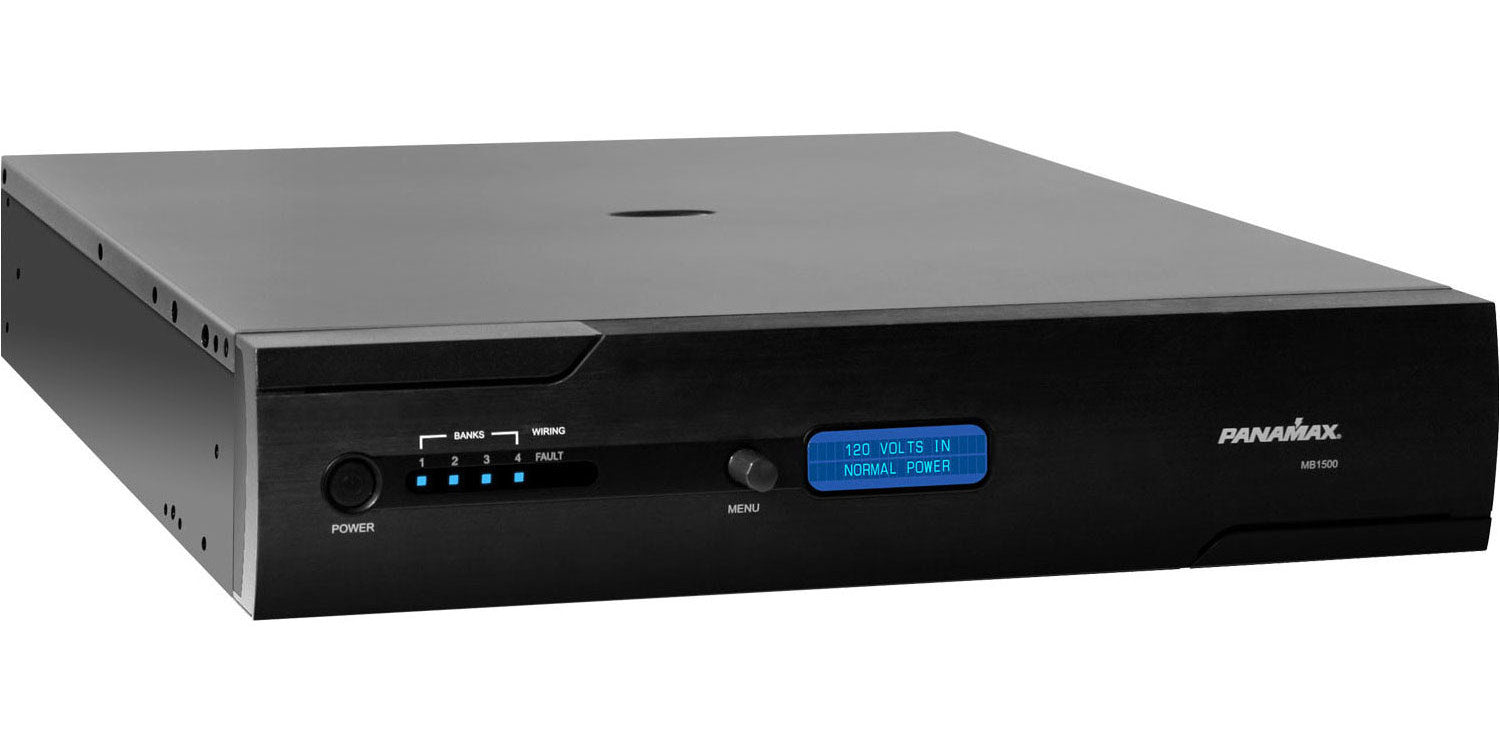

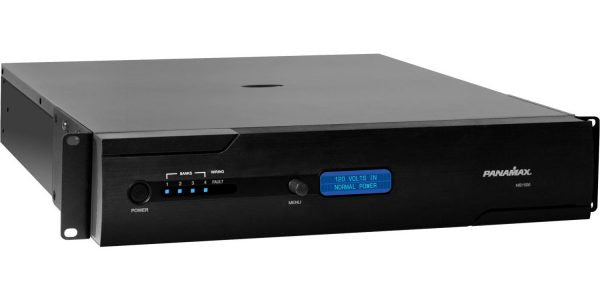

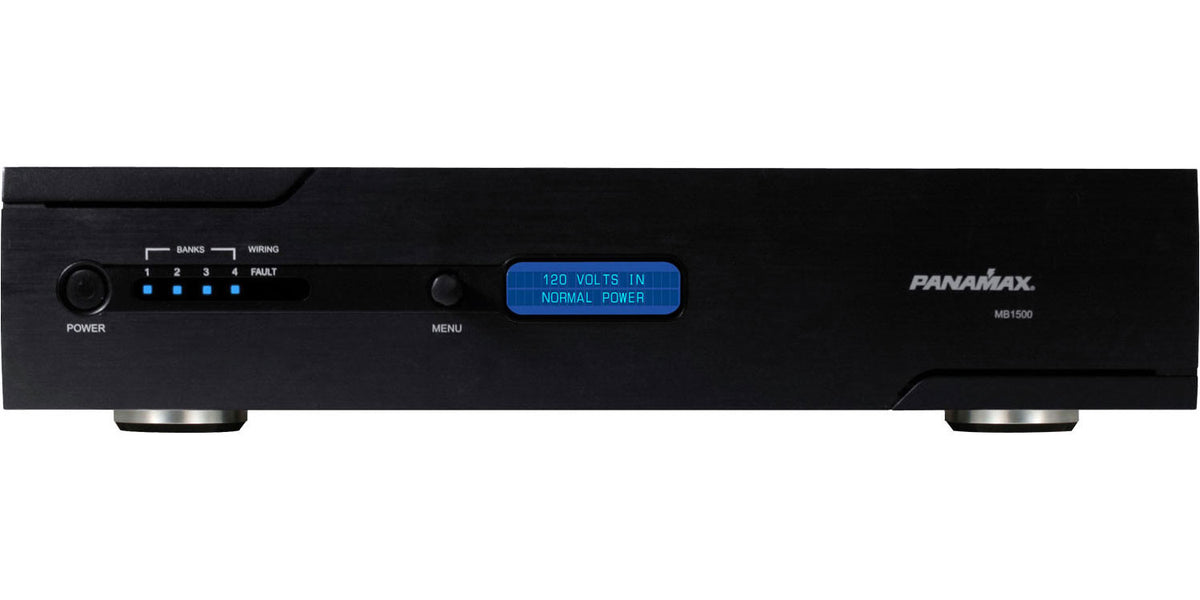

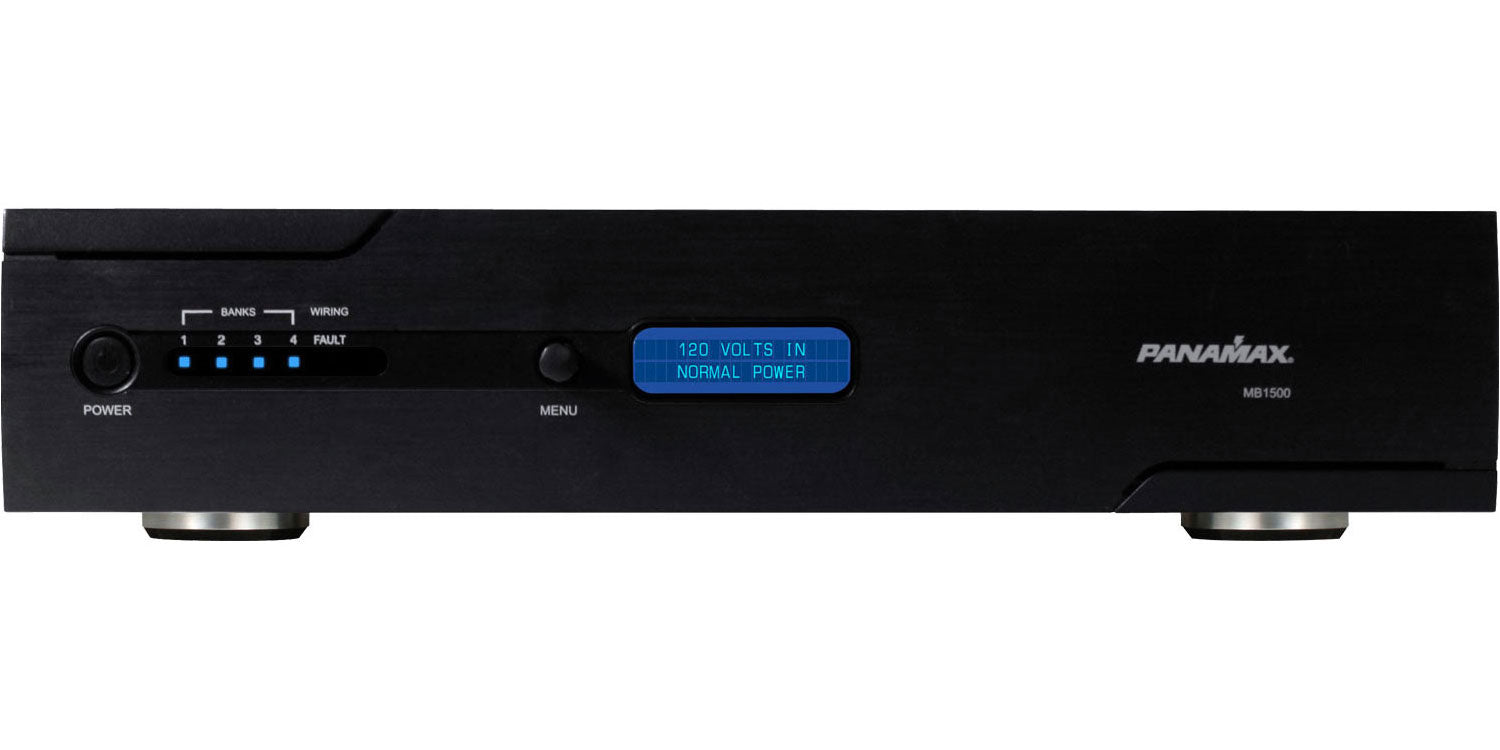

Panamax MB1500 - 1500 VA Rated Battery Backup

Combines Power Management, Voltage Regulation, and Surge Protection with AVM and Battery Backup to provide the complete solution.

MB1500 prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. Shuts off projection equipment via IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off.

• 1500 VA Rated Battery Backup
• True Sine Wave Output
• AVM Automatic Voltage Monitoring
• LiFT Linear Filtering Technology Noise Filtration
• Protect or Disconnect Voltage Protection
• Voltage Regulation
• Dual Learning IR Output Controls
• USB Interface
• RS-232 with Open Source Protocol
• Fully Programmable
• Four Programmable Critical Load Management AC Outlet Groups
• IP Card Module for Remote Control Via Internet (BlueBOLT™ Sold Separately)
• Battery Extension Pack Available To Extend Runtme (BATT1500-EXT Sold Separately)

General

• FamilyRack Mount
• Line Voltage120 (Volts)

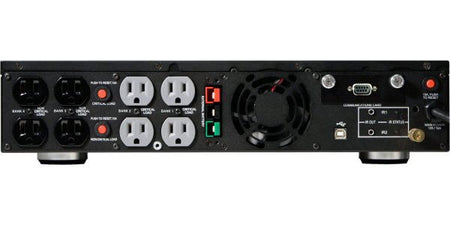

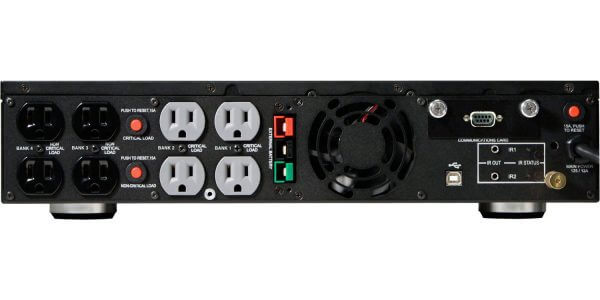

• Number of Outlets8
• Number of Isolated Banks2
• Outlet DescriptionsAll 8 outlets surge protected, linearly filtered, and backed up
• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)LCD Displays status and menu navigation items
• Front Media Light(s)No
• ControlRemote control through RS-232 interface card or via internet with BlueBOLT-CV1 card (sold separately)
• AC Power CordHeavy duty captive power cord
• Dimensions17″ W (19″ w/ rack ears) x 19.2″ D x 3.5″ H (4″ tall with feet installed)
• Weight72 lbs.

Battery Backup

• Input Frequency47 – 63 Hz
• Regulation Capture Range96 – 135V (Sensitive Mode)

  93 – 142V (Standard Mode)
• Output Frequency60 Hz ± 1%
• UPS Output Capacity1500VA, 900W @ 0.6pf
• Regulation Output Range120V ± 5% (Sensitive Mode)
  120V ± 10% (Standard Mode)
• UPS Backup Time (Full Load)12 minutes
• UPS Backup Time (Half Load)32 minutes
• Transfer Time< 4ms

AC Protection

• AC Protection TechnologyNon-sacrificial SMP (Series Multi-Stage Protection)
• Over-Voltage Shutoff150V ± 5V (fast rise)
  140 ± 5V (slow rise)
• Maximum Current Rating12 (Amps)

Filtration

• Filtration TechnologyLinear Filtering Technology (LiFT)
• Filtration Rating10 dB @ 10kHz
  40 dB @ 100 kHz
  50 dB @ 500kHz

Shipping Info

• Length27 (Inches)
• Width22.5 (Inches)
• Height11 (Inches)
• Weight85 (Lbs)
• Unit of MeasureEach
• UPC050616008525
• Master Pack Qty24

Your product is covered by a Warranty.
