Panamax MIW-POWER-PRO-PFP In-Wall Power Conditioner

• Provides safe and noise-free filtered power to remote plasma screens, LCD´s and ceiling projectors.
• Voltage Monitoring Circuit protects equipment against prolonged over voltages by disconnecting the power and reconnecting it when safe power returns.
• May be used in conjunction with MIW-DUAL SIGNAL BAY and signal line modules (sold separately).
• Surge Suppression Rating of 330V.
• 3 Year Product Warranty.
• Limited Lifetime Connected Equipment Protection Policy when properly installed using MIW-Dual Signal Bay and appropriate MIW Module (both sold separately).

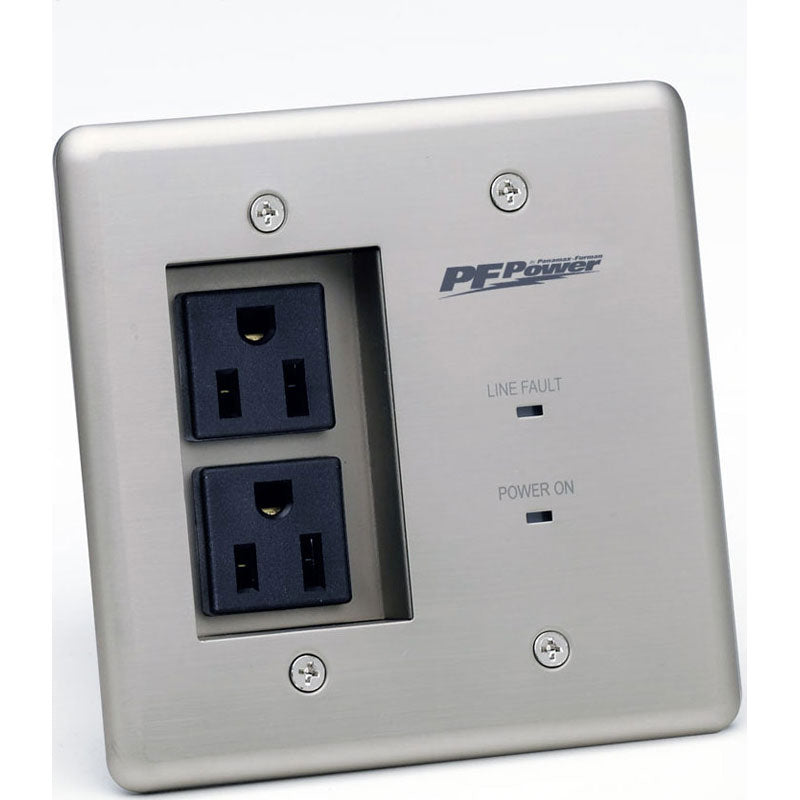

Power Outlet Faceplate

Two recessed AC receptacles deliver power to remotely located devices. Enlarged faceplate (4.5″ x 4.5″) accomodates oversized wall cutouts.

Line Fault Indicator LED

When lit, this LED indicates there is an overvoltage condition with the power to the MIW Power-Pro PFP.

Power On Indicator LED

Blue light indicates power is being supplied to the MIW Power-Pro PFP outlets.

General

• FamilyIn Wall
• Line Voltage120 (Volts)
• Number of Outlets2
• Outlet Descriptions2 recessed AC outlets, protected and filtered.
• ComplianceCSA
• USB ChargingN/A
• Low Voltage TriggerN/A
• Dimensions4.5″ W x 2″ D x 4.5 in H
• Weight2 lbs

AC Protection

• AC Protection TechnologyVoltage Monitoring Circuit
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Undervoltage ShutoffN/A
• Over-Voltage Shutoff142 VAC ± 5 VAC
• Maximum Current Rating15 (Amps)

Filtration

• Filtration TechnologyRFI/EMI Filtration
• Signal Line ProtectionNo
