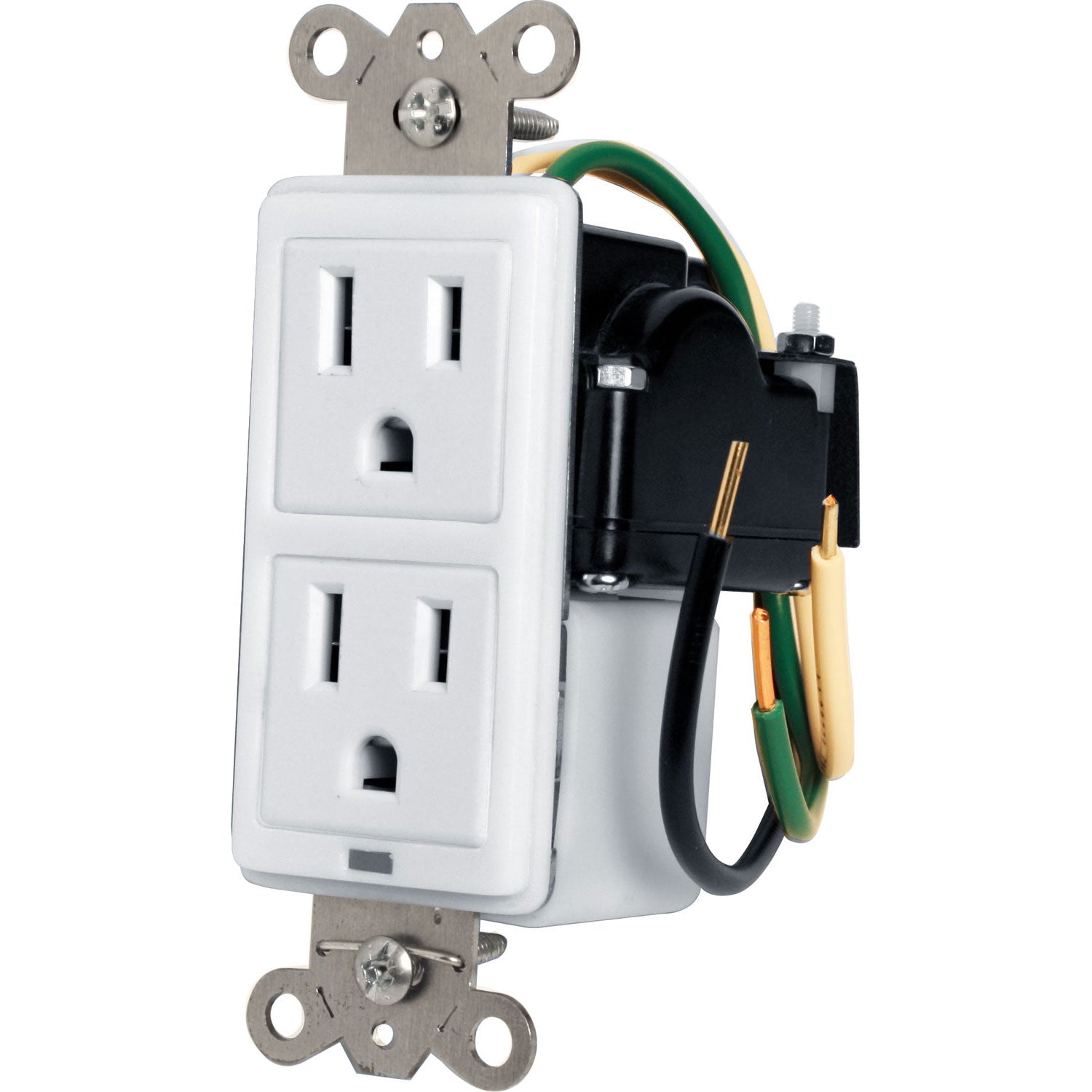

Panamax MIW-Surge-1G In-Wall Duplex

Two AC receptacles provide surge protection. Fits most standard single gang plastic or metal boxes.

• Provides surge protection
• Mounts behind electronic equipment
• CSA Certified for code compliant installations

Decora Faceplate Interface

This piece surrounds the receptacles and fits within a standard cover plates Decora cutout.

Uses standard wiring device screw-hole.

Bi-color Indicator LED.

Green = Power OnRed = Line Fault

Both Outlets with Protect-or-Disconnect Circuitry.

General

• FamilyIn Wall
• Line Voltage120 (Volts)
• Number of Outlets2
• Outlet Descriptions2 surge protected outlets
• ComplianceCSA
• USB ChargingN/A
• Low Voltage TriggerN/A
• Dimensions1.375" W X 2.25" D x 4.25" H

AC Protection

• AC Protection TechnologyProtect or Disconnect
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Undervoltage ShutoffN/A
• Over-Voltage ShutoffN/A
• Maximum Current Rating15 (Amps)
• Initial Clamping LevelN/A

Filtration

• Filtration TechnologyN/A
• Signal Line ProtectionNo

Your product is covered by a Warranty.
