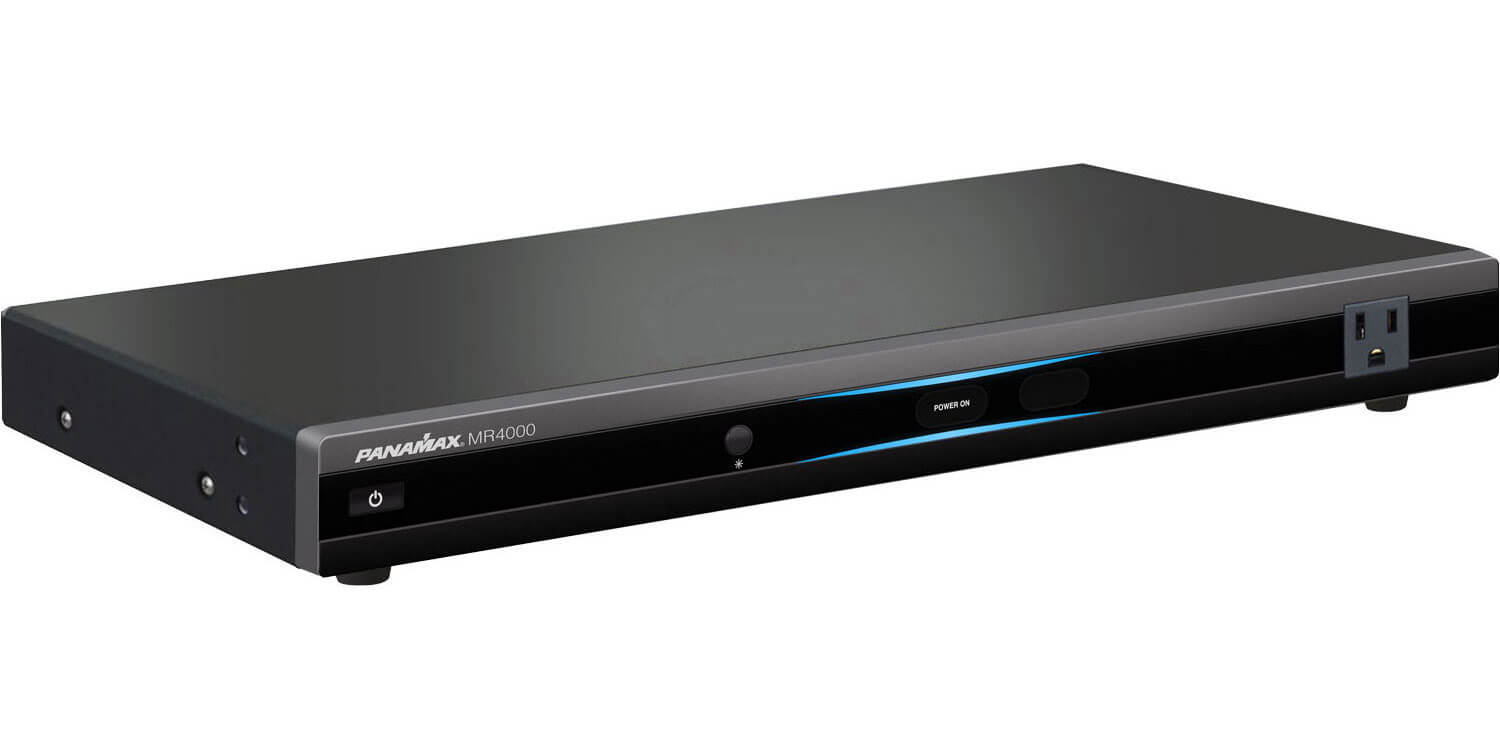

Panamax MR4000 Power management

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

• Eight (8) Protected & Filtered Power Outlets
• Exclusive Automatic Voltage Monitoring (AVM)
• Protect or Disconnect™ Technology
• Panamax Level 2 Noise Filtration
• Antenna, Cable, or Satellite and LAN Signal Protection
• 8 ft. Power Cable with Low Profile Plug

General

• FamilyMR Series
• Line Voltage120 (Volts)
• Number of Outlets8
• Number of Isolated Banks0
• Outlet Descriptions

  1 (filtered outlet, front panel)

  7 (filtered outlets, rear panel)



• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)No
• Front Media Light(s)No
• ControlOn/Off control to all outlets through front panel power button.
• Voltage RegulationNo
• CompliancecCSAus
• USB ChargingN/A
• Low Voltage TriggerN/A
• AC Power Cord8 ft. captive, with low profile plug
• Dimensions17"W x 6"D x 1.75" H, 2.19" H with feet
• Weight6.5 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff95V ± 2V
• Over-Voltage Shutoff140V ±4V
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyRFI/EMI Filtration
• Filtration Rating

  All Outlets:

  -30dB min. @ 100kHz

  -55dB min. @ 250kHz

  -45dB min. @ 500kHz

  Max filtration: -60dB @ 300kHz



• Signal Line Protection1 LAN, 1 Cable/Satellite

Other Specifications

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)400V
• Single Pulse Energy Dissipation1350 Joules
• Response Time< 1ns
• Peak Impulse Current52,000 Amps
• LAN – Wires Protected8-Wires
• LAN – Compatibility10/100bT
• LAN – Clamping Level50V
• Coax – ShieldedYes
• Coax – Insertion Loss< 0.5 dB
• Coax – HD 1080 i/p ReadyYes
• Coax – Frequency Range0 MHz – 2.2 GHz
• Coax – ConnectionsFemale “F”, Gold Plated
• Coax – Clamping Level75V
• Coax – BidirectionalYes

Proposition 65 Warning

• Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Your product is covered by a Warranty.
