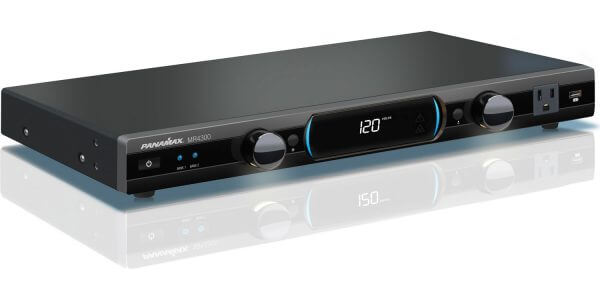

Panamax MR4300 Power Management

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

• 9 Protected & Filtered Power outlets
• Exclusive Automatic Voltage Monitoring (AVM)
• Protect or Disconnect™ Technology
• USB Charging (0.5V/5V)
• Linear Level 3 Filtration (2 Total Isolated banks) with Dedicated High Current Outlet Bank (4 Outlets)
• Antenna, Cable, or Satellite, LAN and TELCO signal protection
• Rotating & Dimmable Media Lights Illuminate Equipment
• 8 ft. Power Cable with Low Profile Plug
• Rack ears included

General

• FamilyMR Series
• Line Voltage120 (Volts)
• Number of Outlets9
• Number of Isolated Banks2
• Outlet Descriptions

  All 9 outlets filtered, and surge protected.

  Bank 2 outlets are high current



• Rack MountableYes
• Rack Ears IncludedYes

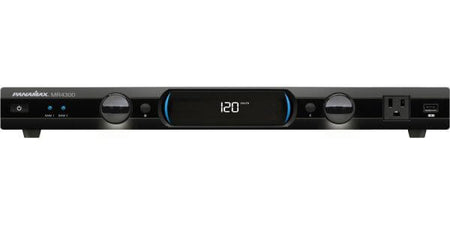

• Front Panel Meter(s)LED voltmeter
• Front Media Light(s)2 rotating, dimmable media lights

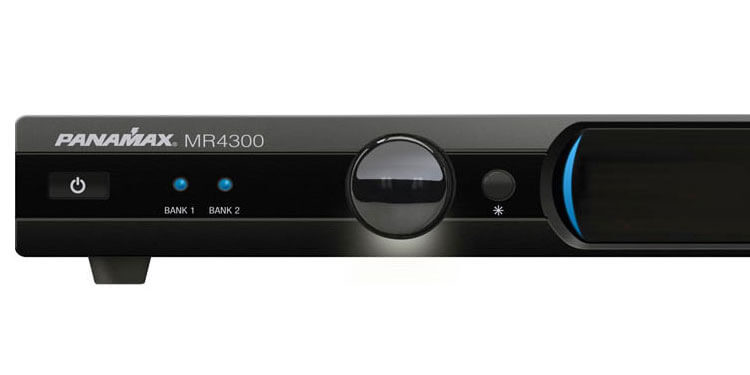

• ControlOn/Off control to all outlets through front panel power button.
• Voltage RegulationNo
• CompliancecCSAus
• USB Charging1 front panel USB charger
• Low Voltage TriggerN/A
• AC Power Cord8 ft. captive, with low profile plug
• Dimensions17″W x 6″D x 1.75″ H, 2.19″ H with feet
• Weight6.5 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff100V ± 2V
• Over-Voltage Shutoff140V ±4V
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyLiFT
• Filtration Rating

  Bank 1:-70dB min. @ 100kHz-65dB min. @ 250kHz-45dB min. @ 500kHzMax filtration: -80dB @ 150kHz

  Bank 2 – High Current, Low Impedance-50dB min. @ 100kHz-60dB min. @ 250kHz-45dB min. @ 500kHzMax filtration: -63dB @ 250kHz



• Signal Line Protection1 LAN, 1 Tel, 2 Cable/Satellite

Other Specifications

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)330V
• Single Pulse Energy Dissipation1575 Joules
• Response Time1ns
• Nominal Discharge Current (UL 1449 3rd Edition)3,000A
• LAN Protection – Wires Protected8-Wires
• LAN – JacksRJ-45
• LAN – Compatibility10/100/1000bT
• LAN – Clamping Level62V ± 6V @ 1 mA
• TEL Protection – Wires Protected2 Wires, 1 Pair (4, 5)
• Telco – JacksRJ-11
• Telco – Fuseless/Auto-ResettingYes
• Telco – Clamping Level260V
• Coax Protection – ShieldedYesCoax – Insertion Loss< 0.5 dB
• Coax – HD 1080 i/p ReadyYes
• Coax – Frequency Range0 MHz – 2.2 GHz
• Coax – ConnectionsFemale “F”, Gold Plated
• Coax – Clamping Level75V
• Coax – BidirectionalYes

Proposition 65 Warning

• Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Your product is covered by a Warranty.
