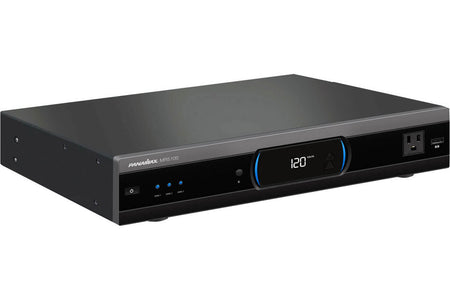

Panamax MR5100 Power Management

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

• 11Protected & Filtered Power Outlets
• Exclusive Automatic Voltage Monitoring (AVM)
• Protect or Disconnect™ Technology
• Power Sequencing (1 Always On Bank, 1 Switched Bank, 1 Delayed High Current Bank)
• USB Charging (0.5V/5V)
• Panamax Linear Level 4 Noise Filtration (3 Total Isolated Banks) With Dedicated High Current Outlet Bank (4 Outlets)
• Antenna, Cable, or Satellite, LAN, and Telco Signal Protection
• 10 ft. Power Cable with Straight Plug
• Rack Mounting Kit Included

General

• FamilyMR Series
• Line Voltage120 (Volts)
• Number of Outlets11
• Number of Isolated Banks3

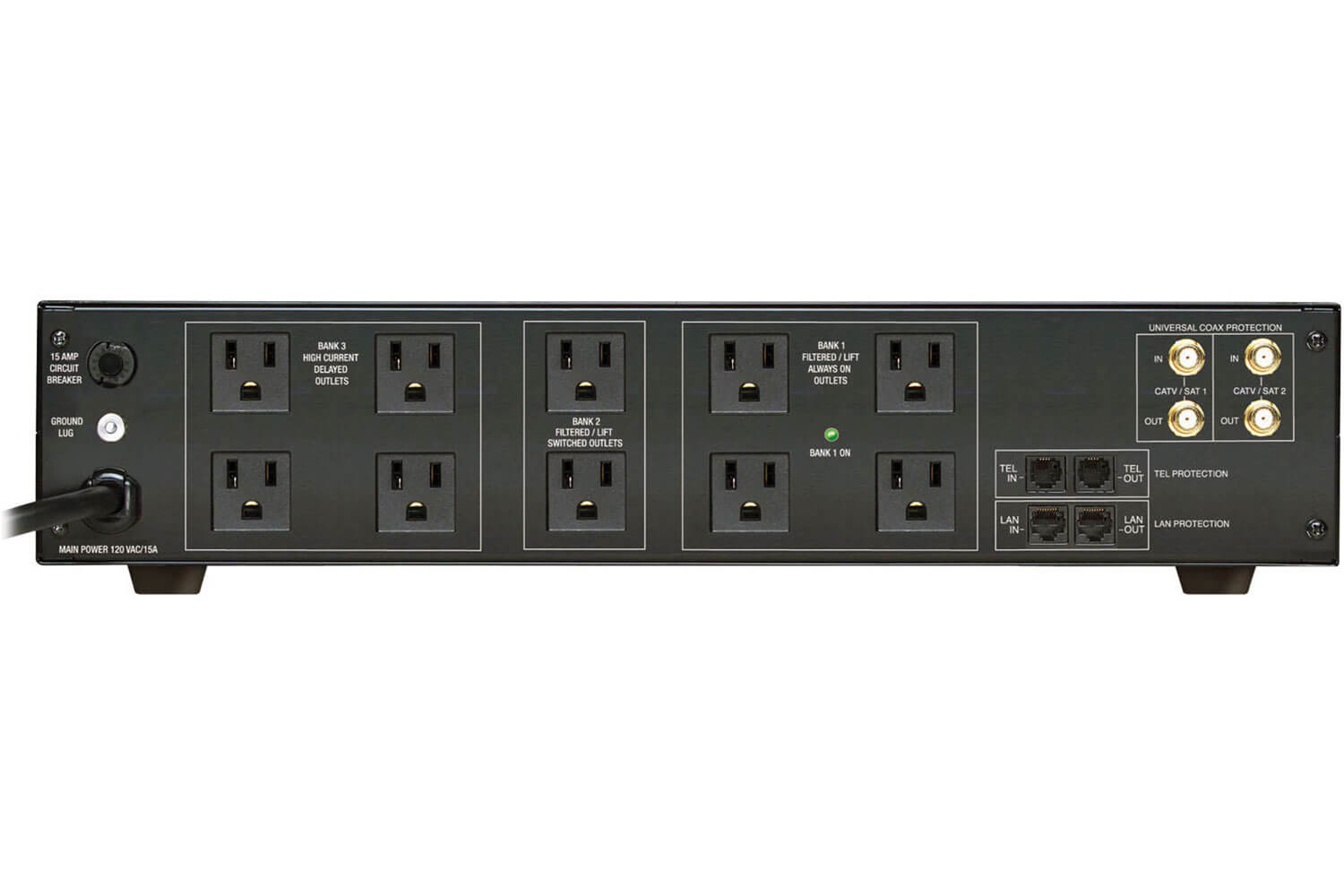

• Outlet Descriptions

  All 11 outlets filtered, and surge protected.

  Bank 1 is always on

  Bank 2 is switchable from front panel power button

  Bank 3 outlets are high current and switchable from power button



• Rack MountableYes
• Rack Ears IncludedYes

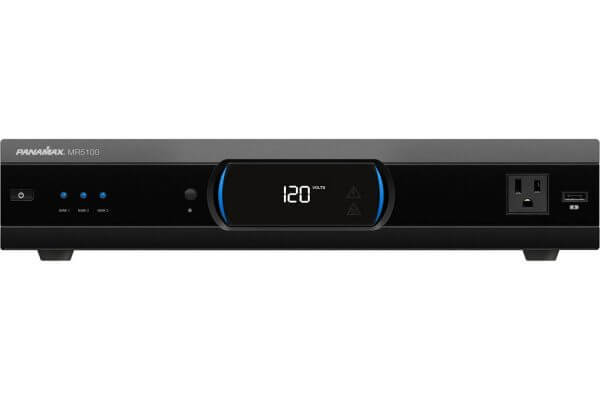

• Front Panel Meter(s)LED voltmeter
• Front Media Light(s)No
• ControlOn/Off control to all outlets through front panel power button.
• Voltage RegulationNo
• CompliancecCSAus
• USB Charging1 front panel USB charger
• Low Voltage TriggerN/A
• AC Power Cord8ft. captured with low profile plug
• Dimensions17″W x 12″D x 3.5″ H, 4″ H with feet
• Weight13.5 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  Automatic Voltage Monitoring
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Under-Voltage Shutoff95V ± 3V
• Over-Voltage Shutoff135V ±2V
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyLiFT
• Filtration Rating

  Bank 1 & 2-65dB min. @ 100kHz-65dB min. @ 250kHz-45dB min. @ 500kHzMax filtration: -80dB @ 150kHz

  Bank 3 – High Current, Low Impedance-50dB min. @ 100kHz-60dB min. @ 250kHz-45dB min. @ 500kHzMax filtration: -63dB @ 250kHz

  Bank-to-Bank (1 vs. 2) Noise Isolation-60dB min. @ 100kHz-65dB min. @ 250kHz-50dB min. @ 500kHzMax filtration: -75dB @ 125kHz



• Signal Line Protection1 LAN, 1 Tel, 2 Cable/Satellite

Other Specifications

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)330V
• Single Pulse Energy Dissipation2025 Joules
• Response Time1ns
• Nominal Discharge Current (UL 1449 3rd Edition)3,000A
• LAN Protection – Wires Protected8-Wires
• LAN – JacksRJ-45
• LAN – Compatibility10/100/1000bT
• LAN – Clamping Level62V ± 6V @ 1 mA
• TEL Protection – Wires Protected2 Wires, 1 Pair (4, 5)
• Telco – JacksRJ-11
• Telco – Fuseless/Auto-ResettingYes
• Telco – Clamping Level260V
• Coax Protection – ShieldedYesCoax – Insertion Loss< 0.5 dB
• Coax – HD 1080 i/p ReadyYes
• Coax – Frequency Range0 MHz – 2.2 GHz
• Coax – ConnectionsFemale “F”, Gold Plated
• Coax – Clamping Level75V
• Coax – BidirectionalYes

Proposition 65 Warning

• Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Your product is covered by a Warranty.
