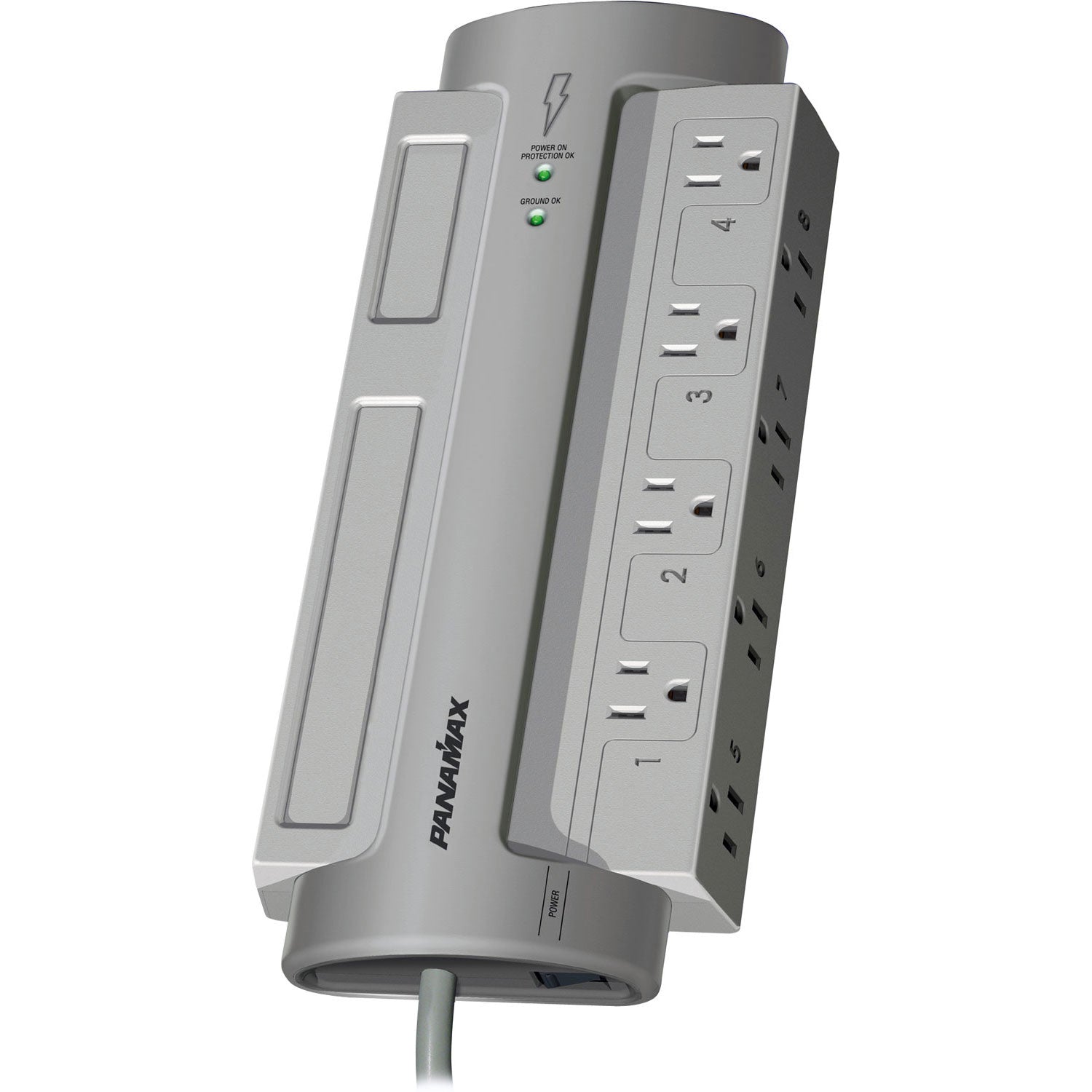

Panamax PM8-EX Noise Filteration Office Equipment

MSRP $

Built for the Trade

Reliable products backed by expert distributor support.

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email 905-799-0086

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500VThermal Fusing: YesSingle Pulse Energy Dissipation: 1125 JoulesResponse Time: < 1 nsPeak Impulse Current: 52,000 Amps

General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet DescriptionsAll 8 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • ComplianceUL 1449 3rd Edition, 3000A
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord6 ft. captive cord
  • Dimensions12" L x 5" W x 1.75" H (12.5" L Including brackets)
  • Weight3.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating45dB @ 100kHz – 1 MHz
  • Signal Line ProtectionNo

Your product is covered by a Warranty.
