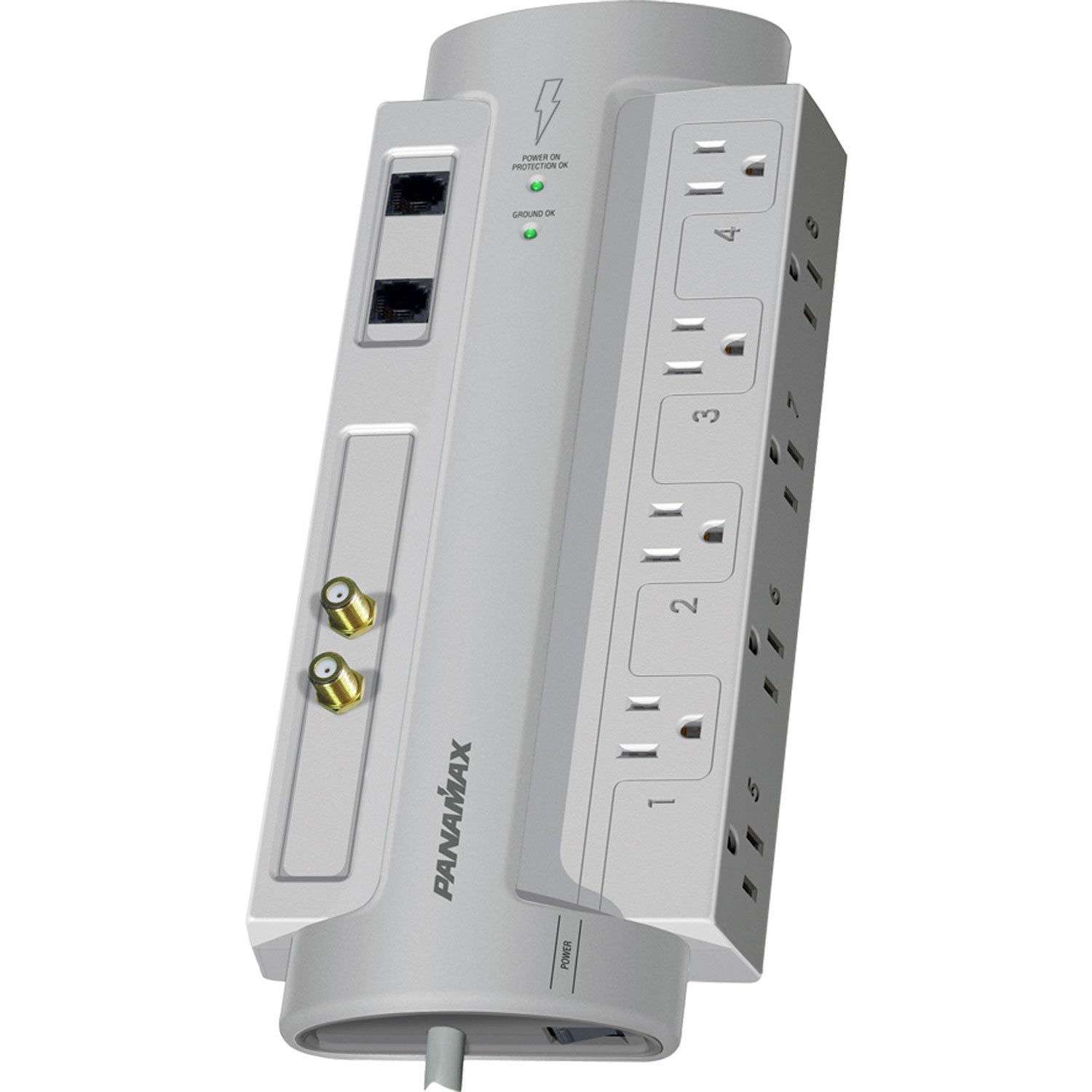

Panamax SP8-AV Surge Protector

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.

• Power Status LED.
• In / Out Telephone Connectors.
• In / Out Coax Connectors for Cable/Sat.
• Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
• Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
• Ground OK LED.
• 8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
• ON / OFF Power Switch and 15A Circuit Breaker.

General

• FamilyFloor Models
• Line Voltage120 (Volts)
• Number of Outlets8
• Outlet DescriptionsAll 8 outlets filtered and surge protected
• ControlOn/Off control to all outlets through power switch.
• ComplianceUL 1449 3rd Edition, 3000A
• USB ChargingN/A
• Low Voltage TriggerN/A
• AC Power Cord6 ft. captive cord
• Dimensions12″ L x 5″ W x 1.75″ H
• Weight3.5 lbs

AC Protection

• AC Protection TechnologyProtect or Disconnect
  L-N, L-G, N-G Protection Modes
  Thermal Fusing
• Undervoltage ShutoffN/A
• Over-Voltage ShutoffN/A
• Maximum Current Rating15 (Amps)
• Initial Clamping Level200V Peak

Filtration

• Filtration TechnologyRFI/EMI Filtration
• Filtration Rating45dB @ 100kHz – 1 MHz
• Signal Line Protection1 Tel
  1 Cable/Satellite

Your product is covered by a Warranty.
